52106630 Lapp Electronic Components

Name: 52106630
Brand: Lapp

Part#:52106630

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

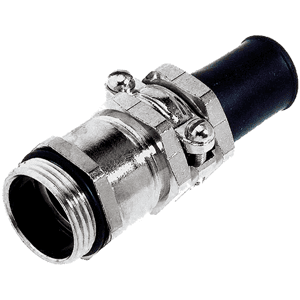

52106630 - LAPP SKINTOP® SKINDICHT® SR-M - M63 x 1.5 Outer Thread PG 48 Inner Thread - 1.26 - 1.576 Inch Clamping Range - Metallic

Product Details

BUSHING
CR (NBR)
STANDARDS/APPROVALS
CE Approved
LOCKNUT
Not Included
OVERALL LENGTH (IN)
4.649
O-RING
NBR
THREAD TYPE
Metric
BODY MATERIAL
Nickel-plated brass
IP RATING
IP65
THREAD LENGTH (IN)
0.394
SERIES
SKINTOP® SKINDICHT SR-M
MANUFACTURER PART NUMBER
52106630
THREAD SIZE
63
CLAMPING RANGE (IN)
1.26 - 1.576
TEMPERATURE RANGE
-4°F to +176°F-20°C to +80°C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
