53111417 Lapp Electronic Components

Name: 53111417
Brand: Lapp

Part#:53111417

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

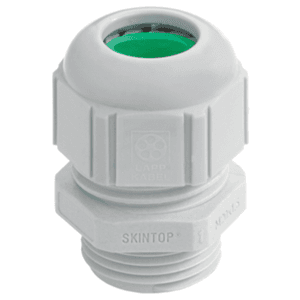

53111417 - LAPP SKINTOP® ST-HF-M Strain Relief Cable Gland - M16 x 1.5 - Light Gray

Product Details

THREAD SIZE
16
THREAD TYPE
Metric
IP RATING
IP68
SERIES
SKINTOP® ST-HF-M
BUSHING
Halogen-free
CLAMPING RANGE (IN)
0.177 - 0.354
OVERALL LENGTH (IN)
1.339
STANDARDS/APPROVALS
CE Approved
COLOR
Light gray
LOCKNUT
Included
BODY MATERIAL
Polyamide
WRENCHING FLATS (IN)
0.748
THREAD LENGTH (MM)
8.001
MANUFACTURER PART NUMBER
53111417
CLAMPING RANGE (MM)
4.5 - 9
STATIC TEMPERATURE RATING
-40°F to +212°F-40°C to +100°C
THREAD LENGTH (IN)
0.315
DYNAMIC TEMPERATURE RATING
-4°F to +212°F-20°C to +100°C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
