53111450 Lapp Electronic Components

Name: 53111450
Brand: Lapp

Part#:53111450

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

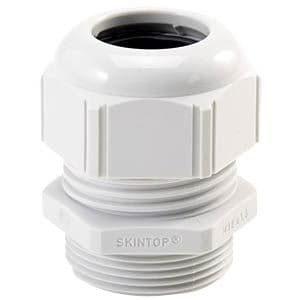

53111450 - LAPP SKINTOP® ST-M Strain Relief Cable Gland - 40 Metric - Light Gray - Standard Thread

Product Details

COLOR
Light gray
STANDARDS/APPROVALS
CE Approved
THREAD TYPE
Metric
THREAD LENGTH (MM)
10
BODY MATERIAL
Polyamide
DYNAMIC TEMPERATURE RATING
-4°F to +212°F-20°C to +100°C
THREAD SIZE
40
LOCKNUT
Not Included
CLAMPING RANGE (MM)
16-28
STATIC TEMPERATURE RATING
-40°F to +212°F-40°C to +100°C
BUSHING
CR
MANUFACTURER PART NUMBER
53111450
SERIES
SKINTOP® ST-M
IP RATING
IP68 IP69

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
