53112250 Lapp Industrial Automation Components

Name: 53112250
Brand: Lapp

Part#:53112250

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

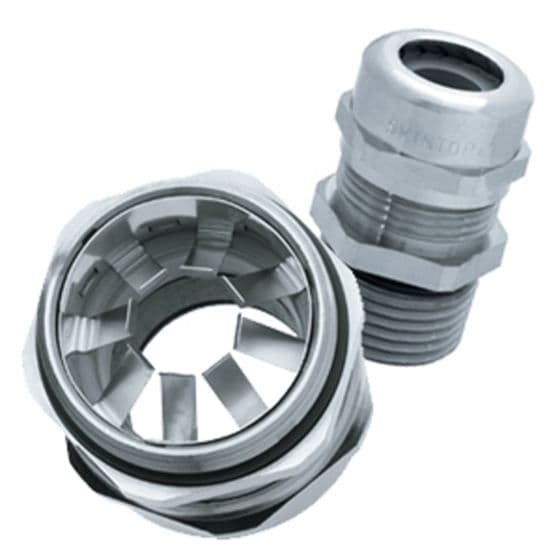

53112250 Lapp - SKINTOP MS-SC PG 21

Product Details

THREAD SIZE
21
CLAMPING RANGE (MM)
11 - 18
STANDARDS/APPROVALS
UL Approved
BODY MATERIAL
Nickel-plated brass
THREAD LENGTH (IN)
0.276
WRENCHING FLATS (IN)
1.181
INSERT
Polyamide
MANUFACTURER PART NUMBER
53112250
THREAD TYPE
PG
OVERALL LENGTH (IN)
1.575
STATIC TEMPERATURE RATING
-40°F to +212°F-40°C to +100°C
COLOR
Metallic
LOCKNUT
Not Included
SERIES
SKINTOP® MS-SC
BUSHING
CR
CLAMPING RANGE (IN)
0.433 - 0.709
DYNAMIC TEMPERATURE RATING
-13°F to +212°F-25°C to +100°C
Thread Type
PG
Color
Metallic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
