53112920 Lapp Industrial Automation Components

Name: 53112920
Brand: Lapp

Part#:53112920

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

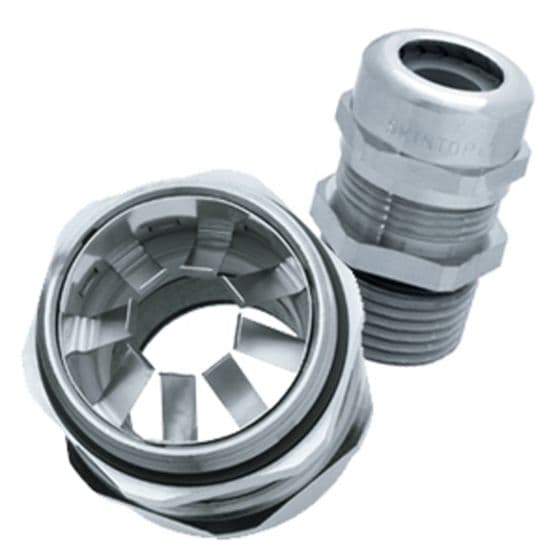

53112920 Lapp - SKINTOP MS-SC NPT 1/2"

Product Details

SERIES
SKINTOP® MS-SC
LOCKNUT
Not Included
MANUFACTURER PART NUMBER
53112920
THREAD SIZE
1/2
DYNAMIC TEMPERATURE RATING
-13°F to +212°F-25°C to +100°C
CLAMPING RANGE (IN)
0.276 - 0.512
INSERT
Polyamide
THREAD LENGTH (IN)
0.591
CLAMPING RANGE (MM)
7 - 13
STANDARDS/APPROVALS
UL Approved
OVERALL LENGTH (IN)
1.674
IP RATING
IP68
THREAD TYPE
NPT
BUSHING
CR
BODY MATERIAL
Nickel-plated brass
STATIC TEMPERATURE RATING
-40°F to +212°F-40°C to +100°C
COLOR
Metallic
WRENCHING FLATS (IN)
0.945
Thread Type
NPT
Color
Metallic

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

53112920 Related Documents

Datasheet.pdf
