73220269 Lapp Electronic Components

Name: 73220269
Brand: Lapp

Part#:73220269

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

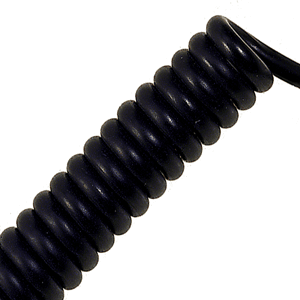

73220269 LAPP UNITRONIC® SPIRAL Retractable Coiled Cable (20" - 79" length) - Shielded - 24 AWG 7 Conductor - Black

Product Details

JACKET MATERIAL
Polyurethane (PUR)
NOMINAL OD (IN)
0.287
MANUFACTURER PART NUMBER
73220269
NUMBER OF CONDUCTORS
7
EXTENDED LENGTH (IN)
79
INSULATION MATERIAL
Thermoplastic elastomer (TPE)
CONDUCTOR MATERIAL
Bare copper
SERIES
UNITRONIC® SPIRAL
STANDARDS/APPROVALS
VDE
TYPE
Data Cable
SPIRAL OD (MM)
26
AWG/GAUGE
24
RETRACTED LENGTH (IN)
20
JACKET COLOR
Black
SPIRAL OD (IN)
1.024
VOLTAGE
250V
SHIELDING
Copper spiral shield
NOMINAL OD (MM)
7.3
RETRACTED LENGTH (MM)
500
CONDUCTOR STRANDING
Stranded

EXTENDED LENGTH (MM)

2000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
