73220330 Lapp Electronic Components

Name: 73220330
Brand: Lapp

Part#:73220330

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

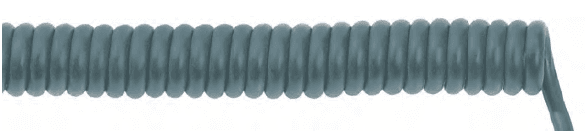

73220330 LAPP UNITRONIC® SPIRAL LiF2Y11Y Retractable Coiled Cable (4" - 16" length) - Unshielded - 26 AWG 12 Conductor - Gray

Product Details

CONDUCTOR MATERIAL
Bare copper
VOLTAGE
250V
INSULATION MATERIAL
Polyolefin
AWG/GAUGE
26
CONDUCTOR STRANDING
Stranded
TYPE
Data Cable
SERIES
UNITRONIC® SPIRAL LiF2Y11Y
NUMBER OF CONDUCTORS
12
RETRACTED LENGTH (MM)
100
NOMINAL OD (MM)
5.9
SHIELDING
Unshielded
JACKET MATERIAL
Polyurethane (PUR)
EXTENDED LENGTH (IN)
16
SPIRAL OD (MM)
21
RETRACTED LENGTH (IN)
4
NOMINAL OD (IN)
0.232
SPIRAL OD (IN)
0.827
EXTENDED LENGTH (MM)
400
MANUFACTURER PART NUMBER
73220330
STANDARDS/APPROVALS
CE Approved

JACKET COLOR

Gray

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
