C5E008S10 Lapp Electronic Components

Name: C5E008S10
Brand: Lapp

Part#:C5E008S10

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

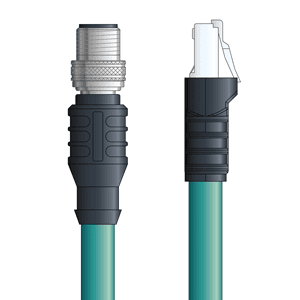

C5E008S10 - LAPP ETHERLINE® Industrial Cordsets 26 AWG / 4 pair CAT5e - Teal Polyurethane (PUR) - M12 Male / RJ45 connectors - 10m

Product Details

TYPE
CAT5e
SHIELDING
Copper Braid
MANUFACTURER PART NUMBER
C5E008S10
LENGTH
10m (32.8ft)
IP RATING
IP67
AWG/GAUGE
26
TEMPERATURE
-4°F to +140°F -20°C to +60°C
CONTACT CARRIER MATERIAL
Thermoplastic polyurethane
NUMBER OF POSITIONS
8
INSULATION MATERIAL
Polyethylene
JACKET COLOR
Teal
NUMBER OF PAIRS
4 pair
JACKET MATERIAL
Polyurethane (PUR)
SERIES
ETHERLINE® Industrial Ethernet Cordsets
ENVIRONMENTAL
Oil-resistant
CONNECTORS
M12 Male / RJ45
VOLTAGE
42V
APPLICATION
Motion systems where a network connection has been integrated for program interface from remote locations.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

C5E008S10 Related Documents

Datasheet.pdf
