C5E104S05 Lapp Electronic Components

Name: C5E104S05
Brand: Lapp

Part#:C5E104S05

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

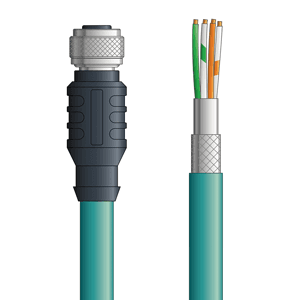

C5E104S05 - LAPP ETHERLINE® Industrial Cordsets 26 AWG / 2 pair CAT5e - Teal Polyurethane (PUR) - M12 Female / Wire Leads connectors - 5m

Product Details

TYPE
CAT5e
NUMBER OF PAIRS
2 pair
LENGTH
5m (16.4ft)
NUMBER OF POSITIONS
4
CONNECTORS
M12 Female / Wire Leads
AWG/GAUGE
26
CONTACT CARRIER MATERIAL
Thermoplastic polyurethane
SHIELDING
Copper Braid
SERIES
ETHERLINE® Industrial Ethernet Cordsets
INSULATION MATERIAL
Polyethylene
JACKET COLOR
Teal
TEMPERATURE
-4°F to +140°F -20°C to +60°C
VOLTAGE
42V
ENVIRONMENTAL
Oil-resistant
APPLICATION
Motion systems where a network connection has been integrated for program interface from remote locations.
IP RATING
IP67
JACKET MATERIAL
Polyurethane (PUR)
MANUFACTURER PART NUMBER
C5E104S05

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
