PB4110101F01 Lapp Electronic Components

Name: PB4110101F01
Brand: Lapp

Part#:PB4110101F01

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

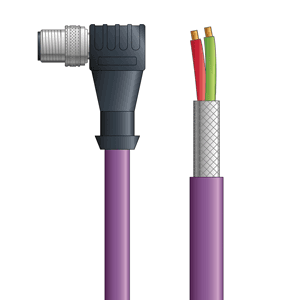

PB4110101F01 - LAPP UNITRONIC® PROFIBUS Cordsets 24 AWG / 1 pair Bus - Violet Polyurethane (PUR) - M12 Male 90 deg / Wire Leads connectors - 1m

Product Details

CONNECTORS
M12 Male 90 deg / Wire Leads
JACKET MATERIAL
Polyurethane (PUR)
SERIES
UNITRONIC® PROFIBUS Cordsets
JACKET COLOR
Violet
CONTACT CARRIER MATERIAL
PBT
TEMPERATURE
-40°F to +176°F -40°C to +80°C
SHIELDING
Foil Braid
VOLTAGE
250V
NUMBER OF POSITIONS
5
IP RATING
IP67
NUMBER OF PAIRS
1 pair
ENVIRONMENTAL
Oil-resistant
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).
TYPE
Bus
AWG/GAUGE
24
MANUFACTURER PART NUMBER
PB4110101F01
LENGTH
1m (3.28ft)
INSULATION MATERIAL
Polyethylene

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
