PB4110109S01 Lapp Electronic Components

Name: PB4110109S01
Brand: Lapp

Part#:PB4110109S01

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

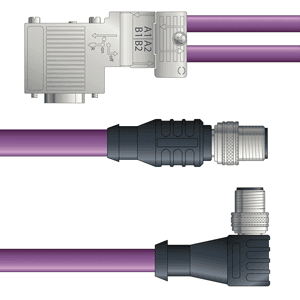

PB4110109S01 - LAPP UNITRONIC® PROFIBUS Cordsets 22 AWG / 1 pair Bus - Violet PVC - M12 Male 90 deg (2) / D-sub Node connectors - 1m

Product Details

JACKET COLOR
Violet
MANUFACTURER PART NUMBER
PB4110109S01
AWG/GAUGE
22
TEMPERATURE
-40°F to +176°F -40°C to +80°C
TYPE
Bus
JACKET MATERIAL
PVC
LENGTH
1m (3.28ft)
CONTACT CARRIER MATERIAL
PBT
IP RATING
IP67
SERIES
UNITRONIC® PROFIBUS Cordsets
INSULATION MATERIAL
Polyethylene
CONNECTORS
M12 Male 90 deg (2) / D-sub Node
VOLTAGE
250V
NUMBER OF PAIRS
1 pair
SHIELDING
Foil Braid
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).
NUMBER OF POSITIONS
5
ENVIRONMENTAL
Oil-resistant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
