PB4110139F10 Lapp Electronic Components

Name: PB4110139F10
Brand: Lapp

Part#:PB4110139F10

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

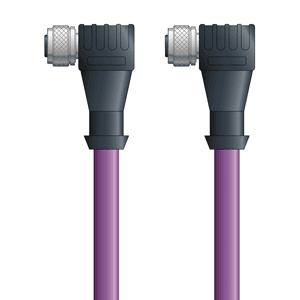

PB4110139F10 - LAPP UNITRONIC® PROFIBUS Cordsets 24 AWG / 1 pair Bus - Violet Polyurethane (PUR) - M12 Female 90 deg / M12 Female 90 deg connectors - 10m

Product Details

NUMBER OF PAIRS
1 pair
JACKET COLOR
Violet
AWG/GAUGE
24
VOLTAGE
250V
MANUFACTURER PART NUMBER
PB4110139F10
SERIES
UNITRONIC® PROFIBUS Cordsets
TYPE
Bus
SHIELDING
Foil Braid
CONTACT CARRIER MATERIAL
PBT
ENVIRONMENTAL
Oil-resistant
IP RATING
IP67
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).
NUMBER OF POSITIONS
5
JACKET MATERIAL
Polyurethane (PUR)
LENGTH
10m (32.8ft)
INSULATION MATERIAL
Polyethylene
CONNECTORS
M12 Female 90 deg / M12 Female 90 deg
TEMPERATURE
-40°F to +176°F -40°C to +80°C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PB4110139F10 Related Documents

Datasheet.pdf
