PB4110149S02 Lapp Electronic Components

Name: PB4110149S02
Brand: Lapp

Part#:PB4110149S02

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

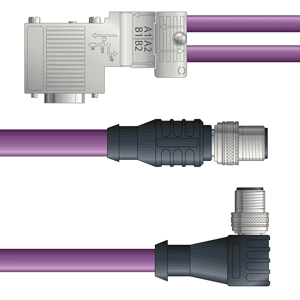

PB4110149S02 - LAPP UNITRONIC® PROFIBUS Cordsets 22 AWG / 1 pair Bus - Violet PVC - M12 Male and M12 Male 90 deg / D-sub Node connectors - 2m

Product Details

TYPE
Bus
LENGTH
2m (6.56ft)
NUMBER OF PAIRS
1 pair
SERIES
UNITRONIC® PROFIBUS Cordsets
AWG/GAUGE
22
JACKET COLOR
Violet
NUMBER OF POSITIONS
5
CONTACT CARRIER MATERIAL
PBT
SHIELDING
Foil Braid
MANUFACTURER PART NUMBER
PB4110149S02
CONNECTORS
M12 Male and M12 Male 90 deg / D-sub Node
JACKET MATERIAL
PVC
TEMPERATURE
-40°F to +176°F -40°C to +80°C
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).
VOLTAGE
250V
ENVIRONMENTAL
Oil-resistant
INSULATION MATERIAL
Polyethylene
IP RATING
IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
