PB4110152S01 Lapp Electronic Components

Name: PB4110152S01
Brand: Lapp

Part#:PB4110152S01

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

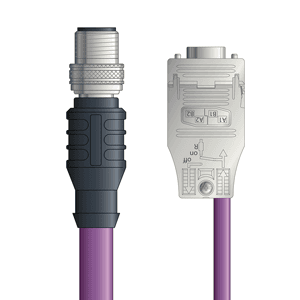

PB4110152S01 - LAPP UNITRONIC® PROFIBUS Cordsets 22 AWG / 1 pair Bus - Violet PVC - M12 Male / D-sub Straight connectors - 1m

Product Details

TYPE
Bus
CONNECTORS
M12 Male / D-sub Straight
IP RATING
IP67
NUMBER OF PAIRS
1 pair
JACKET COLOR
Violet
SHIELDING
Foil Braid
ENVIRONMENTAL
Oil-resistant
SERIES
UNITRONIC® PROFIBUS Cordsets
JACKET MATERIAL
PVC
MANUFACTURER PART NUMBER
PB4110152S01
AWG/GAUGE
22
VOLTAGE
250V
NUMBER OF POSITIONS
5
TEMPERATURE
-40°F to +176°F -40°C to +80°C
LENGTH
1m (3.28ft)
INSULATION MATERIAL
Polyethylene
CONTACT CARRIER MATERIAL
PBT
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
