PB4110154F05 Lapp Electronic Components

Name: PB4110154F05
Brand: Lapp

Part#:PB4110154F05

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

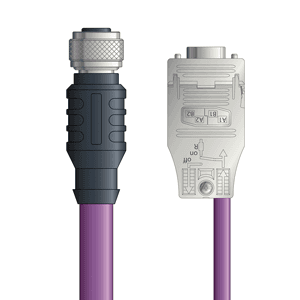

PB4110154F05 - LAPP UNITRONIC® PROFIBUS Cordsets 24 AWG / 1 pair Bus - Violet Polyurethane (PUR) - M12 Female / D-sub Straight connectors - 5m

Product Details

CONTACT CARRIER MATERIAL
PBT
JACKET MATERIAL
Polyurethane (PUR)
LENGTH
5m (16.4ft)
NUMBER OF PAIRS
1 pair
CONNECTORS
M12 Female / D-sub Straight
APPLICATION
For motion applications designed to provide interconnection between simple (sensors and actuators) and high level devices (PLC's and computers).
AWG/GAUGE
24
SHIELDING
Foil Braid
NUMBER OF POSITIONS
5
TEMPERATURE
-40°F to +176°F -40°C to +80°C
SERIES
UNITRONIC® PROFIBUS Cordsets
MANUFACTURER PART NUMBER
PB4110154F05
TYPE
Bus
VOLTAGE
250V
INSULATION MATERIAL
Polyethylene
ENVIRONMENTAL
Oil-resistant
JACKET COLOR
Violet
IP RATING
IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
