S1312 Lapp Industrial Automation Components

S1312 on Powermatic Associates
Lapp

Part#:S1312

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

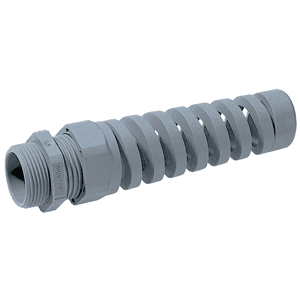

S1312 Lapp - SLN FLEX 1/2" SKINTOP GY 53016630

Product Details

  • COLOR
    Gray
  • OVERALL LENGTH (IN)
    4.097
  • THREAD LENGTH (MM)
    15.0114
  • STANDARDS/APPROVALS
    UL Approved CE Approved
  • LOCKNUT
    Included
  • THREAD TYPE
    NPT
  • CLAMPING RANGE (IN)
    0.197 - 0.472
  • CLAMPING RANGE (MM)
    5 - 12
  • BUSHING
    CR
  • THREAD SIZE
    1/2
  • WRENCHING FLATS (IN)
    0.945
  • SERIES
    SKINTOP® SLN FLEX
  • STATIC TEMPERATURE RATING
    -4°F to +176°F-20°C to +80°C
  • BODY MATERIAL
    Polyamide
  • MANUFACTURER PART NUMBER
    S1312
  • THREAD LENGTH (IN)
    0.591
  • DYNAMIC TEMPERATURE RATING
    -4°F to +212°F-20°C to +100°C
  • IP RATING
    IP68
  • Thread Type
    NPT
  • Color
    Gray, Silver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

S1312 Related Documents

Datasheet.pdf
