CTSEM-10L Mencom Electronic Components

Name: CTSEM-10L
Brand: Mencom
Price: 51.8 USD
Availability: BackOrder

Part#:CTSEM-10L

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

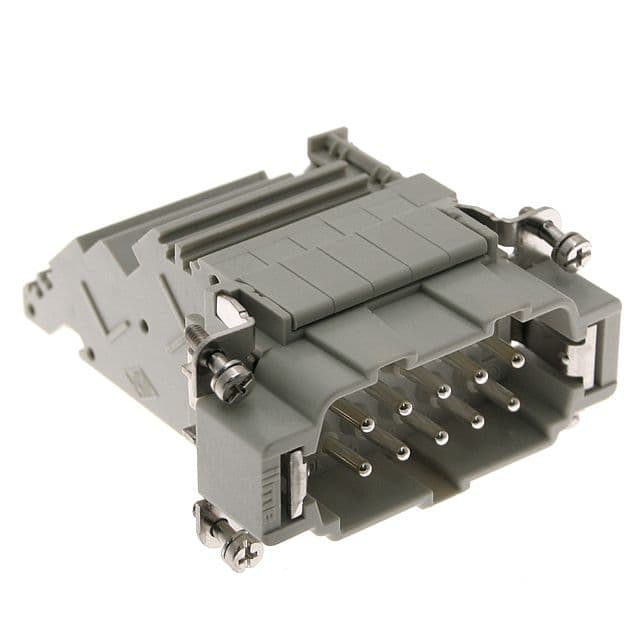

Standard, CTSE series, Male Rectangular Insert, size 57.27, 10 pin, 16 amp, Standard Spring Left ground

Product Details

Housing/Insert Type
Standard
Product Type
Rectangular Connectors
Lower AWG
26
Upper AWG
14
ILME Series
CTSE
Pin Count
10
Insert Dimension
57.27
Termination
Standard Spring
Component Type
Insert
Contact Plating
Silver
Voltage Rating
600
Gasket/O-Ring
No
Number of Entries
0
Amperage Rating
16
Weight (lbs.)
0.256000
Enclosure Dimension
57.27
Gender
Male
Cover
No
Temperature Range in Degrees Celsius
-40 C to +125 C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CTSEM-10L on Powermatic Associates is $51.80. Order now.
