MIN-5MPX-3 Mencom Electronic Components

Name: MIN-5MPX-3
Brand: Mencom
Price: 44.75 USD
Availability: BackOrder

Part#:MIN-5MPX-3

Manufacturer:Mencom

Category:Electronic Components

Product Lifecycle:Active

Product description

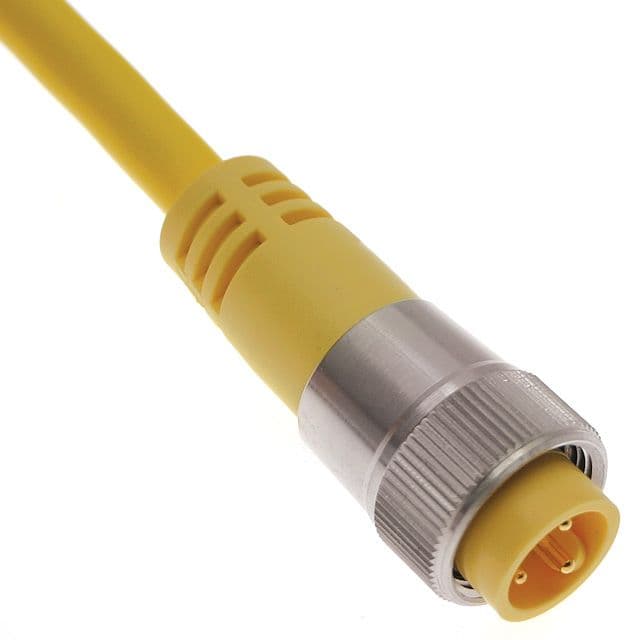

MIN Size I, Cordset, 5 Pole, Male Straight, 3 Ft, 5.5A, Yellow, PVC

Product Details

Pin Count
5
Coupling Thread Gender1
Female
Cable Length in feet
3
Gender
Male
Amperage Rating
5.5
Ground Wire
Yes
Mating Thread / Type Head 1
7/8-16UN2
Mencom Series
MIN Size I
Orientation Head 1
Male Straight
Cable O.D.
0.29
Gland Upper Range
0.29
Product Type
Cables
Voltage Rating
300
Cable Jacket Material
PVC
Component Type
Cordset
Wire Gauge
18
Jacket Color
Yellow
Nut
No
Cable Length in meters
1
Shell / Coupling Nut Material
Nickel Plated Brass

IP Rating

IP69

Color Code

North American

Weight (lbs.)

0.224900

Gland Lower Range

0.29

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MIN-5MPX-3 on Powermatic Associates is $44.75. Order now.

MIN-5MPX-3 Related Documents

MIN-5MPX-ZZ.PDF-1631088414154.pdf MIN-5MPX-ZZ.DWG-1631088414144.dwg MIN-5MPX-ZZ.DXF-1631088414152.dxf A-10.pdf-1631088414149.pdf
