7000-12762-0000000 Murr Elektronik Cable Assemblies
Part#:7000-12762-0000000
Alt. Part#:7000-12761-0000000
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Jul 3, 2025
Product description

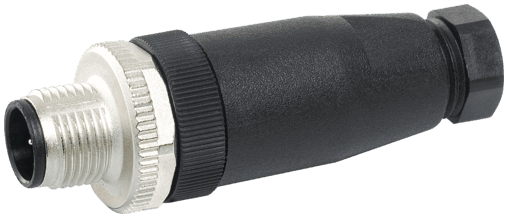

7000-12762-0000000 Murrelektronik - M12 male 0° field-wireable screw term. 5-pol. max.0,75mm² 6-8mm
Product Details
- Weight 24.5 g
- Series Connector Systems
- Coding A-coded
- Material (contact) Copper alloy
- Form 12762
- Contact resistance ≤ 8 mΩ
- Sealing range (cable Ø) 6...8 mm
- Connection Screw terminal
- Protection IP67 inserted and tightened (EN 60529)
- Isolation resistance ≥ 100 MΩ
- Operating current per contact max. 4 A
- Material (housing) PBT GF
- Connection cross section max. 0.75 mm²
- Material (contact surface) gold plated
- Locking material Copper alloy
- Over voltage category II
- Operating voltage max. 60 V
- Temperature range -40...+85 °C
- No. of poles 5-pole
- Pollution Degree 3
- Compression gland M12 (0.6 Nm, SW18)
- Product article number of manufacturer 7000-12762-0000000
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
7000-12762-0000000 Related Documents
Similar products from: Murr Elektronik Cable Assemblies
Manufacturer warranty
7000-12762-0000000 Murr Elektronik
Get a quick Quote!
Request a quote, and we will send you price within minutes.
Stock:
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 7000-12762-0000000 with other Cable Assemblies products
Weight
Series
Coding
Material (contact)
Form
Contact resistance
Sealing range (cable Ø)
Connection
Protection
Isolation resistance
Selected product
7000-12762-0000000
Murr Elektronik
7000-12762-0000000 Murrelektronik - M12 male 0° field-wireable screw term. 5-pol. max.0,75mm² 6-8mm
Weight24.5 g
SeriesConnector Systems
CodingA-coded
Material (contact)Copper alloy
Form12762
Contact resistance≤ 8 mΩ
Sealing range (cable Ø)6...8 mm
ConnectionScrew terminal
ProtectionIP67 inserted and tightened ...
Isolation resistance≥ 100 MΩ
7000-12761-0000000
Murr Elektronik

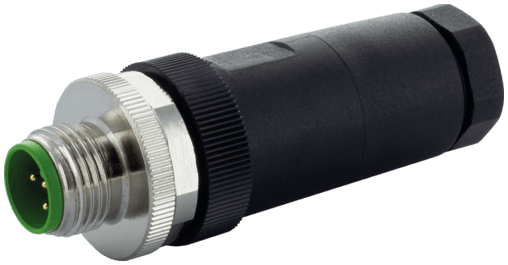

7000-12761-0000000 Murrelektronik - M12 MALE 0° WIREABLE SCREW TERM., 5-pol. max.0,75mm² 6-8mm
Weight24.5 g
SeriesConnector Systems
Coding-
Material (contact)-
Form12761
Contact resistance-
Sealing range (cable Ø)6...8 mm
Connection-
ProtectionIP67 inserted and tightened ...
Isolation resistance-
7000-42111-0000000
Murr Elektronik

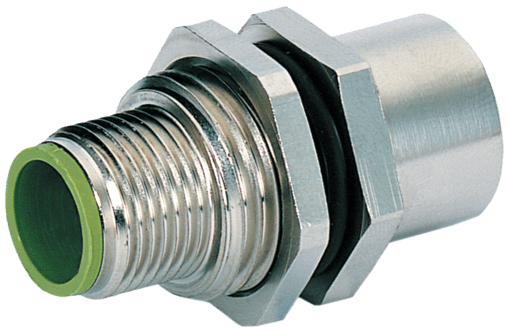

7000-42111-0000000 Murrelektronik - M12-PANEL FEED THROUGH A-CODED
Weight34 g
SeriesConnector Systems
CodingA-coded
Material (contact)-
Form42111
Contact resistance-
Sealing range (cable Ø)-
Connection-
ProtectionIP65 and IP67 when plugged a...
Isolation resistance-
About the manufacturer
Powermatic Associates is an authorized Murr Elektronik distributor, proudly offering a wide range of innovative and high-quality industrial products to enhance your automation systems. Murr Elektronik stands as a global leader in the development and production of cutting-edge solutions for electrical engineering and automation technology. With a robust portfolio that includes power supply systems,...
