22216CAMKE4 NSK Mechanical Components

22216CAMKE4 on Powermatic Associates
NSK

Part#:22216CAMKE4

Manufacturer:NSK

Category:Mechanical Components

Product Lifecycle:Active

Product description

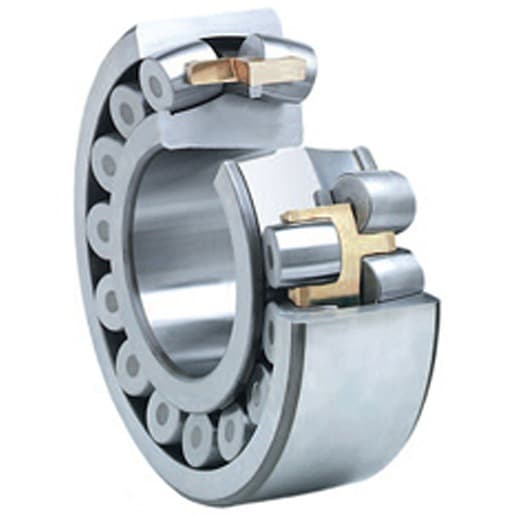

Spherical Roller Bearing; 80MM Tapered Bore; 140MM Outside Diameter; 33MM Width; C0-Medium Clearance; Adapter Mount; Double Row of Spherical Roller Bearing; Brass Cage Material; Open Enclosure; Relubricatable

Product Details

  • Internal Clearance
    C0-Medium
  • Enclosure
    Open
  • Outside Diameter
    5.512 Inch | 140 Millimeter
  • Bore Profile
    Tapered
  • CATEGORY
    Spherical Roller Bearings
  • Width
    1.299 Inch | 33 Millimeter
  • Mounting Method
    Adapter Mount
  • Weight / LBS
    2.09
  • Rolling Element
    Spherical Roller Bearing
  • Number of Rows of Rollers
    Double Row
  • Bore
    3.15 Inch | 80 Millimeter
  • Minimum Buy Quantity
    N/A
  • Adapter Part Number
    SNW16 H316 HA316 HE316 (Specify Bore) Inch | H316 (Specify bore) Millimeter
  • Brand
    NSK
  • Withdrawal Sleeve
    AH316 (Specify bore)
  • Weight / Kilogram
    2.01
  • Other Features
    Order Adapter or Withdrawal Sleeve or Nut Separately. Others May be Available | Lubrication Hole and Groove On Outer Ring
  • Relubricatable
    Yes
  • Cage Material
    Brass
  • Inch - Metric
    Metric

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

22216CAMKE4 NSK
