23252CAMC3P55W507 NSK Mechanical Components

Name: 23252CAMC3P55W507
Brand: NSK

23252CAMC3P55W507 on Powermatic Associates

Part#:23252CAMC3P55W507

Manufacturer:NSK

Category:Mechanical Components

Product Lifecycle:Active

Product description

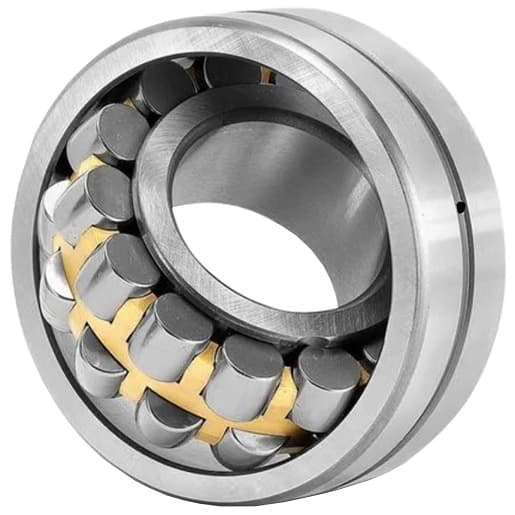

Spherical Roller Bearing; 260MM Straight Bore; 480MM Outside Diameter; 174MM Width; C3-Loose Clearance; Shaft Mount; Double Row of Spherical Roller Bearing; Brass Cage Material; Open Enclosure; Relubricatable

Product Details

Bore
10.236 Inch | 260 Millimeter
Adapter Part Number
Not Applicable Inch | Not Applicable Millimeter
Width
6.85 Inch | 174 Millimeter
Outside Diameter
18.898 Inch | 480 Millimeter
Weight / LBS
298.88951
Other Features
Lubrication Hole and Groove On Outer Ring | Inner Ring and Outer Ring Heat Stabilized to 200 Deg C
Inch - Metric
Metric
Withdrawal Sleeve
Not Applicable
Number of Rows of Rollers
Double Row
Withdrawal Nut
Not Applicable
CATEGORY
Spherical Roller Bearings
Minimum Buy Quantity
N/A
Enclosure
Open
Relubricatable
Yes
Brand
NSK
Bore Profile
Straight
Internal Clearance
C3-Loose
Rolling Element
Spherical Roller Bearing
Weight / Kilogram
137.0
Cage Material
Brass

Mounting Method

Shaft Mount

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty
