6003ZZ NSK Mechanical Components

Name: 6003ZZ
Brand: NSK

Part#:6003ZZ

Manufacturer:NSK

Category:Mechanical Components

Product Lifecycle:Active

Product description

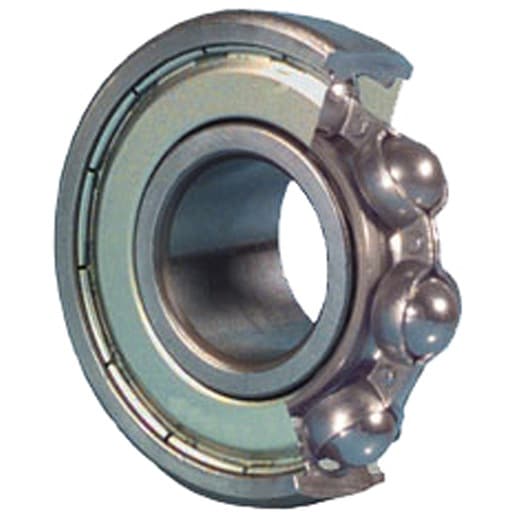

Single Row Ball Bearing; 17MM Bore; 35MM Outside Diameter; 10MM Outer Race Width; 2 Metal Shields; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium Internal Clearance; Steel Cage

Product Details

Snap Ring
No
Outer Race Width
0.394 Inch | 10 Millimeter
Brand
NSK
Internal Clearance
C0-Medium
Weight / Kilogram
0.04
Internal Special Features
No
Enclosure
2 Metal Shields
Weight / LBS
0.039
Inch - Metric
Metric
Precision Class
ABEC 1 | ISO P0
Cage Material
Steel
Minimum Buy Quantity
N/A
Maximum Capacity / Filling Slot
No
Other Features
Deep Groove
CATEGORY
Single Row Ball Bearings
Outside Diameter
1.378 Inch | 35 Millimeter
Rolling Element
Ball Bearing
Bore
0.669 Inch | 17 Millimeter

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

6003ZZ NSK

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 6003ZZ with other Mechanical Components products

Snap Ring

Outer Race Width

Brand

Internal Clearance

Weight / Kilogram

Internal Special Features

Enclosure

Weight / LBS

Inch - Metric

Precision Class

Selected product

Backordered

NSK

Single Row Ball Bearing; 17MM Bore; 35MM Outside Diameter; 10MM Outer Race Width; 2 Metal Shields; A...

Snap RingNo

Outer Race Width0.394 Inch | 10 Millimeter

BrandNSK

Internal ClearanceC0-Medium

Weight / Kilogram0.04

Internal Special FeaturesNo

Enclosure2 Metal Shields

Weight / LBS0.039

Inch - MetricMetric

Precision ClassABEC 1 | ISO P0

1 in stock

Ringball

Single Row Ball Bearing; 17MM Bore; 35MM Outside Diameter; 10MM Outer Race Width; Open; ABEC 1 | ISO...

Snap RingNo

Outer Race Width-

BrandRINGBALL

Internal ClearanceC0-Medium

Weight / Kilogram0.04

Internal Special FeaturesNo

EnclosureOpen

Weight / LBS-

Inch - Metric-

Precision ClassABEC 1 | ISO P0

5 in stock

Koyo

Single Row Ball Bearing; 28MM Bore; 68MM Outside Diameter; 18MM Outer Race Width; Open; ABEC 1 | ISO...

Snap RingNo

Outer Race Width-

BrandKOYO

Internal ClearanceC0-Medium

Weight / Kilogram-

Internal Special FeaturesNo

EnclosureOpen

Weight / LBS-

Inch - Metric-

Precision ClassABEC 1 | ISO P0

About the manufacturer

Powermatic Associates is an authorized NSK distributor, offering a wide array of high-quality products and solutions from NSK, a global leader in the design and manufacturing of motion control and bearing technologies. With a strong reputation for innovation, NSK specializes in providing advanced solutions that cater to various industries including automotive, agriculture, mining, construction, fo...
