6864MC3 NSK Mechanical Components

Name: 6864MC3
Brand: NSK

Part#:6864MC3

Manufacturer:NSK

Category:Mechanical Components

Product Lifecycle:Active

Product description

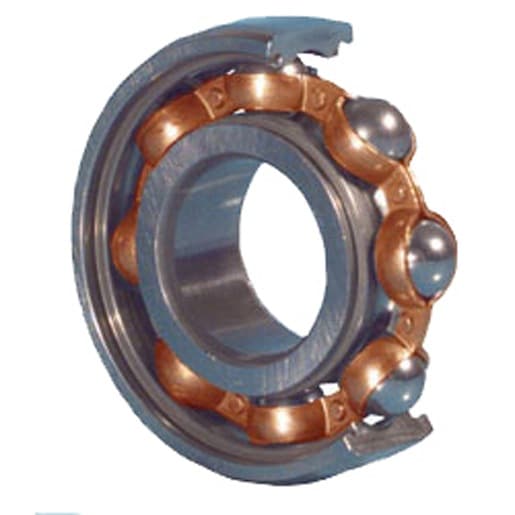

Single Row Ball Bearing; 320MM Bore; 400MM Outside Diameter; 38MM Outer Race Width; Open; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C3-Loose Internal Clearance; Brass Cage

Product Details

Bore
12.598 Inch | 320 Millimeter
Outside Diameter
15.748 Inch | 400 Millimeter
Weight / LBS
23.814
Outer Race Width
1.496 Inch | 38 Millimeter
Other Features
Deep Groove
Inch - Metric
Metric
Cage Material
Brass
Internal Clearance
C3-Loose
Weight / Kilogram
10.8
Internal Special Features
No
Snap Ring
No
Enclosure
Open
Minimum Buy Quantity
N/A
Maximum Capacity / Filling Slot
No
Brand
NSK
Precision Class
ABEC 1 | ISO P0
Rolling Element
Ball Bearing
CATEGORY
Single Row Ball Bearings

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

6864MC3 NSK
