694 NSK Mechanical Components

694 on Powermatic Associates

NSK

Part#:694

Manufacturer:NSK

Category:Mechanical Components

Product Lifecycle:Active

Product description

Single Row Ball Bearing; 4MM Bore; 11MM Outside Diameter; 4MM Outer Race Width; Open; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium Internal Clearance; Steel Cage

Product Details

Snap Ring
No
Bore
0.157 Inch | 4 Millimeter
Rolling Element
Ball Bearing
Weight / LBS
1.7
Precision Class
ABEC 1 | ISO P0
Enclosure
Open
CATEGORY
Single Row Ball Bearings
Internal Clearance
C0-Medium
Inch - Metric
Metric
Maximum Capacity / Filling Slot
No
Outside Diameter
0.433 Inch | 11 Millimeter
Minimum Buy Quantity
N/A
Weight / Kilogram
0.77
Outer Race Width
0.157 Inch | 4 Millimeter
Cage Material
Steel
Brand
NSK
Other Features
Deep Groove
Internal Special Features
No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

694 NSK

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 694 with other Mechanical Components products

Snap Ring

Bore

Rolling Element

Weight / LBS

Precision Class

Enclosure

CATEGORY

Internal Clearance

Inch - Metric

Maximum Capacity / Fillin...

Selected product

694

Backordered

694

NSK

Single Row Ball Bearing; 4MM Bore; 11MM Outside Diameter; 4MM Outer Race Width; Open; ABEC 1 | ISO P...

Snap RingNo

Bore0.157 Inch | 4 Millimeter

Rolling ElementBall Bearing

Weight / LBS1.7

Precision ClassABEC 1 | ISO P0

EnclosureOpen

CATEGORYSingle Row Ball Bearings

Internal ClearanceC0-Medium

Inch - MetricMetric

Maximum Capacity / Filling SlotNo

1 in stock

SS 6003

Ringball

Single Row Ball Bearing; 17MM Bore; 35MM Outside Diameter; 10MM Outer Race Width; Open; ABEC 1 | ISO...

Snap RingNo

Bore-

Rolling ElementBall Bearing

Weight / LBS-

Precision ClassABEC 1 | ISO P0

EnclosureOpen

CATEGORYSingle Row Ball Bearings

Internal ClearanceC0-Medium

Inch - Metric-

Maximum Capacity / Filling SlotNo

5 in stock

63/28

Koyo

Single Row Ball Bearing; 28MM Bore; 68MM Outside Diameter; 18MM Outer Race Width; Open; ABEC 1 | ISO...

Snap RingNo

Bore-

Rolling ElementBall Bearing

Weight / LBS-

Precision ClassABEC 1 | ISO P0

EnclosureOpen

CATEGORY-

Internal ClearanceC0-Medium

Inch - Metric-

Maximum Capacity / Filling SlotNo

About the manufacturer

NSK

Powermatic Associates is an authorized NSK distributor, offering a wide array of high-quality products and solutions from NSK, a global leader in the design and manufacturing of motion control and bearing technologies. With a strong reputation for innovation, NSK specializes in providing advanced solutions that cater to various industries including automotive, agriculture, mining, construction, fo...

Recently viewed products

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

RKC 4.5T-3-RSM 50/S90/S3570 on Powermatic Associates

RKC 4.5T-3-RSM 50/S90/S3570

Turck

RKC 4.5T-3-RSM 50/S90/S3570 Turck - RKC 4.5T-3-RSM 50/S90/S3570 Actuator and Sensor Cordset, Extension Cordset

MDM1CSZ23C7 on Powermatic Associates

MDM1CSZ23C7

Novanta IMS

Novanta IMS MDM1CSZ23C7 is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor with SPI communication. It is designed as a triple (3) motor stack Plus version with a universal input. This motor connects via a 12-pin wire crimp connector and supports a supply voltage range of 12Vdc to 75Vdc, accommodating 24Vdc, 48Vdc, and 72Vdc specifically. It is designed for mounting with a 57x57mm flange. The operational ambient air temperature range is from 0 to +85°C. It has an IP20 degree of protection, indicating it is protected against solid objects larger than 12.5mm but not against liquids. The motor's moment of inertia is 0.46kg.cm^2, and it offers a stall torque of 169N.cm. Its resolution is defined by a 1.8° step angle.

37930425 on Powermatic Associates

37930425

SAB

SABclean RT 793 D - 14 AWG/4c, TPE clean room shielded torsional cable, Â±360Â° torsion

HOM2175SB on Powermatic Associates

HOM2175SB

Schneider Electric

Square D by Schneider Electric HOM2175SB is a load center designed for use with a secondary surge arrestor. It has a rated current of 5A and operates at a rated voltage of 120Vac/240Vac. This load center is protected by a NEMA 1 enclosure and is suitable for single-phase (1PH) electrical networks.

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

MDM1CSZ23C7 on Powermatic Associates

MDM1CSZ23C7

Novanta IMS

Novanta IMS MDM1CSZ23C7 is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor with SPI communication. It is designed as a triple (3) motor stack Plus version with a universal input. This motor connects via a 12-pin wire crimp connector and supports a supply voltage range of 12Vdc to 75Vdc, accommodating 24Vdc, 48Vdc, and 72Vdc specifically. It is designed for mounting with a 57x57mm flange. The operational ambient air temperature range is from 0 to +85°C. It has an IP20 degree of protection, indicating it is protected against solid objects larger than 12.5mm but not against liquids. The motor's moment of inertia is 0.46kg.cm^2, and it offers a stall torque of 169N.cm. Its resolution is defined by a 1.8° step angle.

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

Relevant products

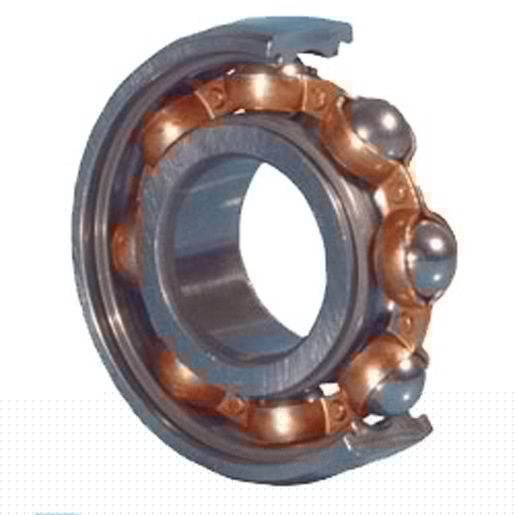

6948MC3 on Powermatic Associates

6948MC3

Verified stock: 0

Single Row Ball Bearing; 240MM Bore; 320MM Outside Diameter; 38MM Outer Race Width; Open; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C3-Loose Internal Clearance; Brass Cage

NSK

6948MZZ on Powermatic Associates

6948MZZ

Verified stock: 0

Single Row Ball Bearing; 240MM Bore; 320MM Outside Diameter; 38MM Outer Race Width; 2 Metal Shields; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium Internal Clearance; Brass Cage

NSK

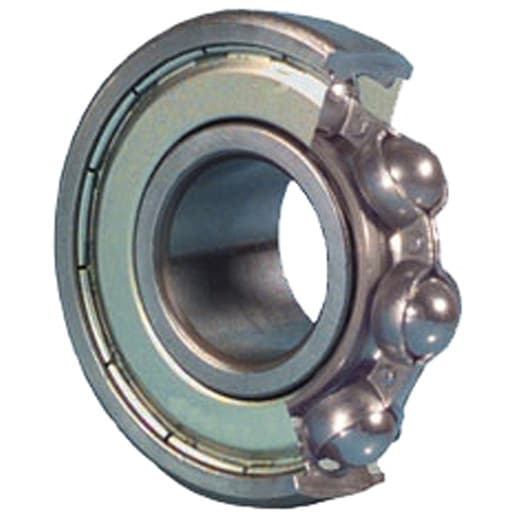

694ZZCMC3 on Powermatic Associates
