UELP211-202D1 NSK Mechanical Components

UELP211-202D1 on Powermatic Associates

NSK

Part#:UELP211-202D1

Manufacturer:NSK

Category:Mechanical Components

Product Lifecycle:Active

Product description

Pillow Block Bearing; 2 Bolt Pillow Block; 2-1/8" Bore; 2-1/2" Base to Center Height; Eccentric Collar Mount; Ball Bearing; Relubricatable; Cast Iron; Non-Expansion

Product Details

Mounting Bolts
5/8 Inch
Weight / LBS
8.2
Housing Style
2 Bolt Pillow Block
CATEGORY
Pillow Block Bearings
Base to Center Height
2.5 Inch | 63.5 Millimeter
Length Thru Bore
2.811 Inch | 71.4 Millimeter
Minimum Buy Quantity
N/A
Insert Part Number
UEL211-202D1
Number of Mounting Holes
2
Expansion / Non-expansion
Non-Expansion
Relubricatable
Yes
Weight / Kilogram
3.72
Housing Configuration
1 Piece Solid
Seals
Single Lip Contact
Housing Material
Cast Iron
Bore
2.125 Inch | 53.975 Millimeter
Brand
NSK
Inch - Metric
Inch
Actual Bolt Center to Center
6.7 Inch | 170.2Millimeter
Rolling Element
Ball Bearing

Nominal Bolt Center to Center

6.8 Inch | 172.7 Millimeter

Mounting Method

Eccentric Collar

Other Features

Single Row

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

UELP211-202D1 NSK

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare UELP211-202D1 with other Mechanical Components products

Mounting Bolts

Weight / LBS

Housing Style

CATEGORY

Base to Center Height

Length Thru Bore

Minimum Buy Quantity

Insert Part Number

Number of Mounting Holes

Expansion / Non-expansion

Selected product

UELP211-202D1

Backordered

UELP211-202D1

NSK

Pillow Block Bearing; 2 Bolt Pillow Block; 2-1/8" Bore; 2-1/2" Base to Center Height; Eccentric Coll...

Mounting Bolts5/8 Inch

Weight / LBS8.2

Housing Style2 Bolt Pillow Block

CATEGORYPillow Block Bearings

Base to Center Height2.5 Inch | 63.5 Millimeter

Length Thru Bore2.811 Inch | 71.4 Millimeter

Minimum Buy QuantityN/A

Insert Part NumberUEL211-202D1

Number of Mounting Holes2

Expansion / Non-expansionNon-Expansion

10 in stock

P2B-DLBED-104S

Dodge Industrial

Pillow Block Bearing; 2 Bolt Pillow Block; 1-1/4" Bore; 1-9/16" Base to Center Height; Concentric Co...

Mounting Bolts1/2 Inch

Weight / LBS-

Housing Style2 Bolt Pillow Block

CATEGORY-

Base to Center Height-

Length Thru Bore-

Minimum Buy QuantityN/A

Insert Part Number-

Number of Mounting Holes2

Expansion / Non-expansionNon-Expansion

306 in stock

P2B-LTB7-102

Dodge Industrial

Pillow Block Bearing; 2 Bolt Pillow Block; 1-1/8" Bore; 1-9/16" Base to Center Height; Shaft Mount M...

Mounting Bolts1/2 Inch

Weight / LBS-

Housing Style2 Bolt Pillow Block

CATEGORY-

Base to Center Height-

Length Thru Bore-

Minimum Buy QuantityN/A

Insert Part Number-

Number of Mounting Holes2

Expansion / Non-expansionNon-Expansion

About the manufacturer

NSK

Powermatic Associates is an authorized NSK distributor, offering a wide array of high-quality products and solutions from NSK, a global leader in the design and manufacturing of motion control and bearing technologies. With a strong reputation for innovation, NSK specializes in providing advanced solutions that cater to various industries including automotive, agriculture, mining, construction, fo...

Recently viewed products

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

RKC 4.5T-3-RSM 50/S90/S3570 on Powermatic Associates

RKC 4.5T-3-RSM 50/S90/S3570

Turck

RKC 4.5T-3-RSM 50/S90/S3570 Turck - RKC 4.5T-3-RSM 50/S90/S3570 Actuator and Sensor Cordset, Extension Cordset

MDM1CSZ23C7 on Powermatic Associates

MDM1CSZ23C7

Novanta IMS

Novanta IMS MDM1CSZ23C7 is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor with SPI communication. It is designed as a triple (3) motor stack Plus version with a universal input. This motor connects via a 12-pin wire crimp connector and supports a supply voltage range of 12Vdc to 75Vdc, accommodating 24Vdc, 48Vdc, and 72Vdc specifically. It is designed for mounting with a 57x57mm flange. The operational ambient air temperature range is from 0 to +85°C. It has an IP20 degree of protection, indicating it is protected against solid objects larger than 12.5mm but not against liquids. The motor's moment of inertia is 0.46kg.cm^2, and it offers a stall torque of 169N.cm. Its resolution is defined by a 1.8° step angle.

37930425 on Powermatic Associates

37930425

SAB

SABclean RT 793 D - 14 AWG/4c, TPE clean room shielded torsional cable, Â±360Â° torsion

HOM2175SB on Powermatic Associates

HOM2175SB

Schneider Electric

Square D by Schneider Electric HOM2175SB is a load center designed for use with a secondary surge arrestor. It has a rated current of 5A and operates at a rated voltage of 120Vac/240Vac. This load center is protected by a NEMA 1 enclosure and is suitable for single-phase (1PH) electrical networks.

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

MDM1CSZ23C7 on Powermatic Associates

MDM1CSZ23C7

Novanta IMS

Novanta IMS MDM1CSZ23C7 is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor with SPI communication. It is designed as a triple (3) motor stack Plus version with a universal input. This motor connects via a 12-pin wire crimp connector and supports a supply voltage range of 12Vdc to 75Vdc, accommodating 24Vdc, 48Vdc, and 72Vdc specifically. It is designed for mounting with a 57x57mm flange. The operational ambient air temperature range is from 0 to +85°C. It has an IP20 degree of protection, indicating it is protected against solid objects larger than 12.5mm but not against liquids. The motor's moment of inertia is 0.46kg.cm^2, and it offers a stall torque of 169N.cm. Its resolution is defined by a 1.8° step angle.

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

Relevant products

UELP207D1 on Powermatic Associates

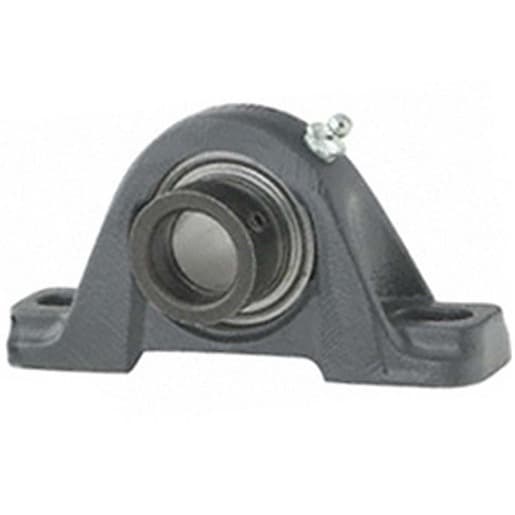

UELP207D1

Verified stock: 0

Pillow Block Bearing; 2 Bolt Pillow Block; 35MM Bore; 47.6MM Base to Center Height; Eccentric Collar Mount; Ball Bearing; Relubricatable; Cast Iron; Non-Expansion

NSK

UELP211-203D1W3 on Powermatic Associates

UELP211-203D1W3

Verified stock: 0

Pillow Block Bearing; 2 Bolt Pillow Block; 2-3/16" Bore; 2-1/2" Base to Center Height; Eccentric Collar Mount; Ball Bearing; Relubricatable; Cast Iron; Non-Expansion

NSK

UELP206-102D1 on Powermatic Associates

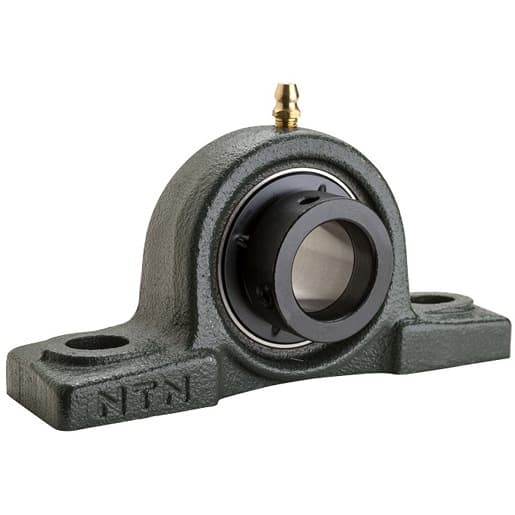

UELP206-102D1
