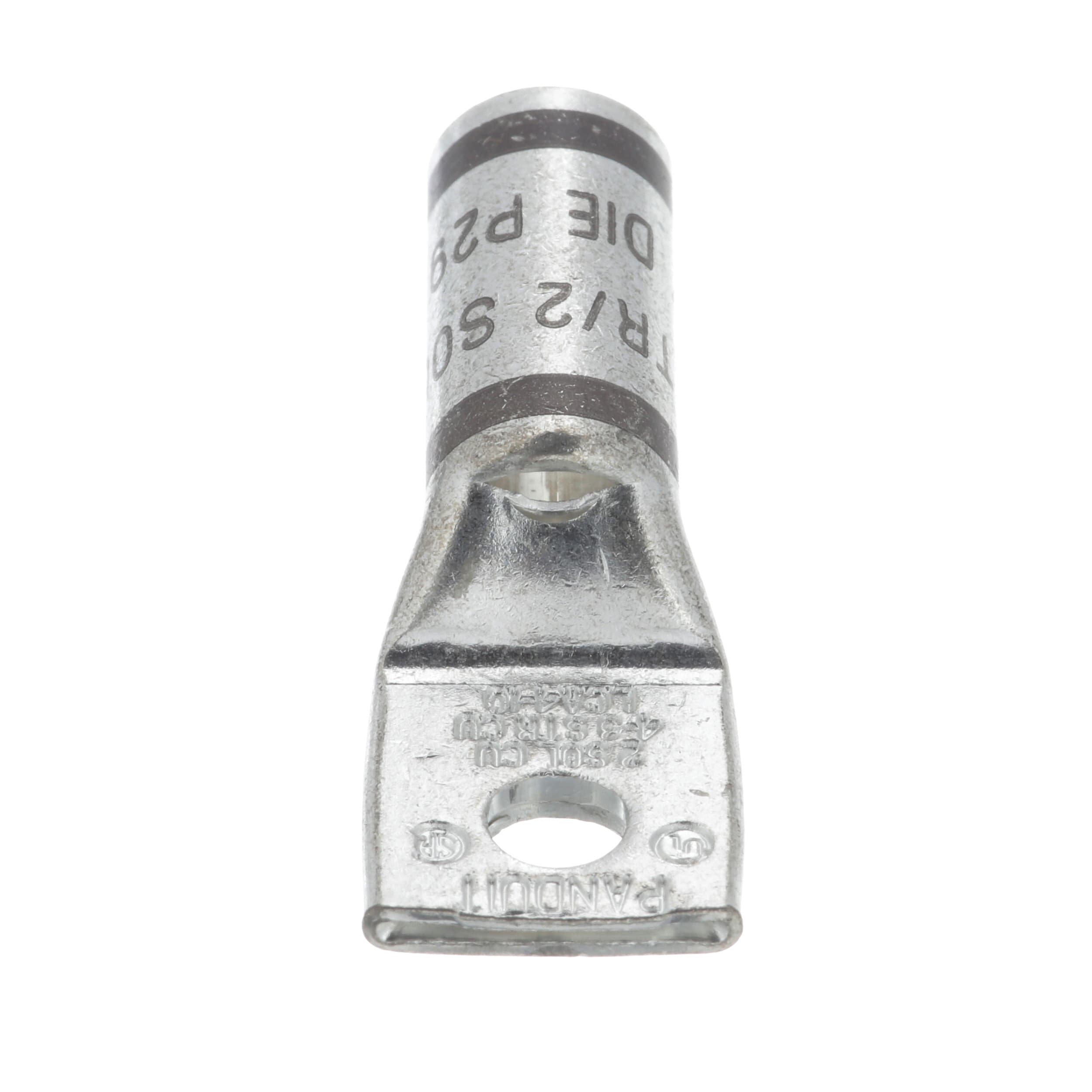

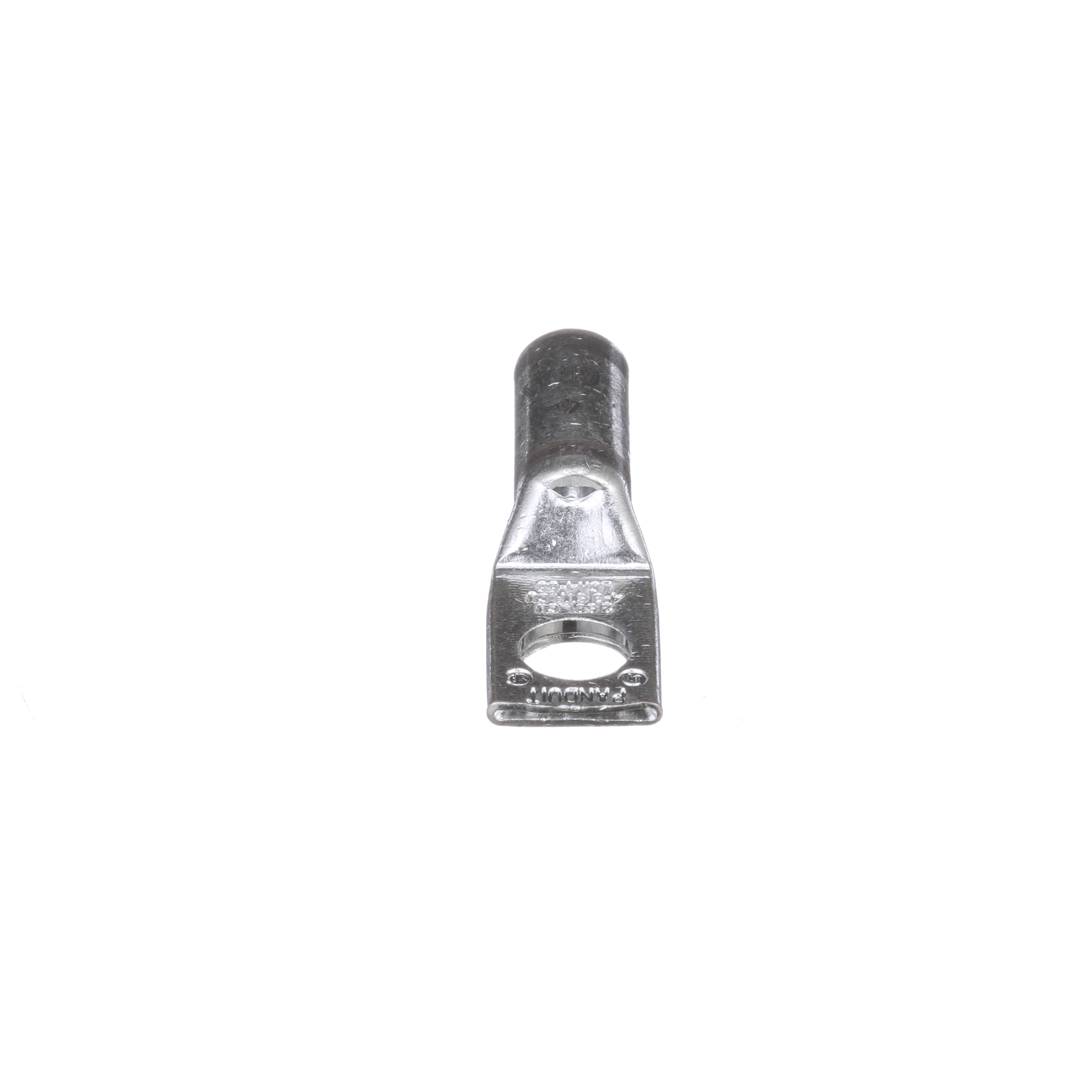

LCA4-56-L Panduit Electronic Components

Product Details

• Barrel Length (mm)
  20.6
• Standards Met
  C22.2 No. 65-13, 486A-486B File #E52164
• Lug Type
  1 Stud Hole Lug
• Tongue Width (mm)
  14
• Base Material
  Copper
• Barrel Type
  Standard Barrel with Inspection Window
• Outer Diameter (In.)
  0.38
• Barrel Length (In.)
  0.81
• Overall Length (In.)
  1.75
• Outer Diameter (mm)
  9.65
• Stud Hole Size (mm)
  7.9
• Tongue Thickness (mm)
  2.3
• Inside Diameter (In.)
  0.28
• Stud Hole Size (In.)
  5/16
• Tongue Width (In.)
  0.55
• Copper Code Conductor Size (AWG)
  4
• Tongue Type
  Standard
• Finish/Coating
  Tin-Plated
• Wire Strip Length (mm)
  22.2
• Inside Diameter (mm)
  7.11
Tongue Angle
Straight
Maximum Voltage (kV)
35
Product Type
Tin-Plated Copper Compression Connectors - Lugs
Sub Brand
Pan-Lug™
Tongue Thickness (In.)
0.09
Color Code
Gray
Panduit Die Index Number
P29
Part Features
Tin plated to inhibit corrosion,color coded barrel,inspection window, NEBS level 3.
Overall Length (mm)
44.4
Wire Strip Length (In.)
7/8
Burndy Die Index Number
8
UL Temperature Rating (°C)
90
T & B Die Index Number
8
