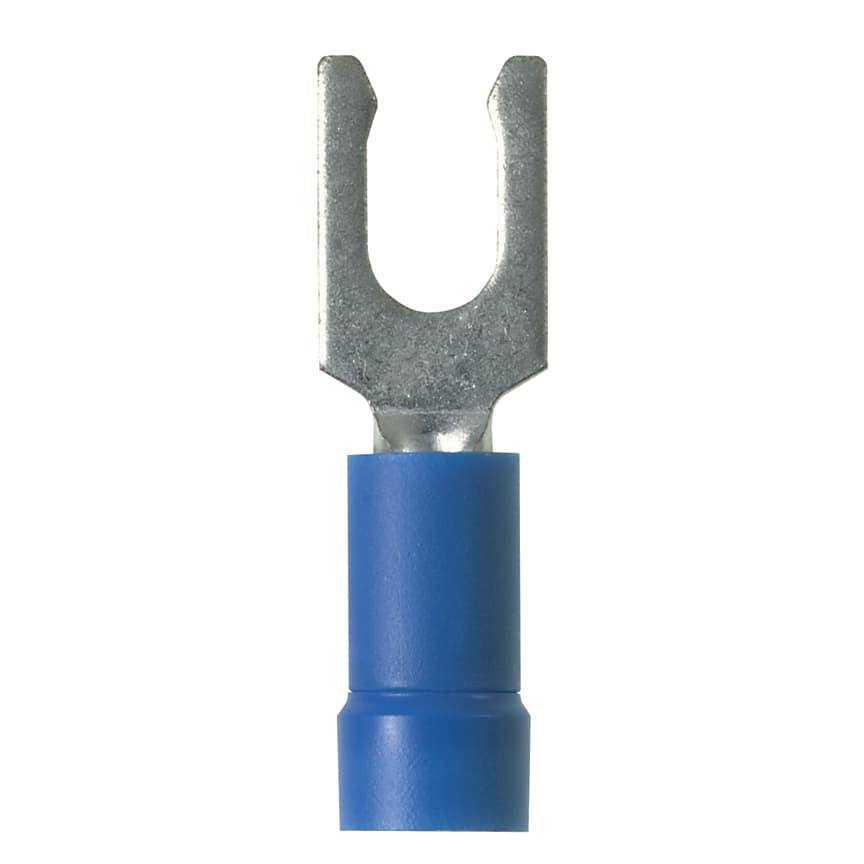

PV14-6LF-C Panduit Electronic Components

Product Details

• Maximum Copper Conductor Size (AWG SOL)
  #14
• Minimum Copper Conductor Size (AWG)
  #18
• Maximum Voltage (kV)
  0.6
• Flammability Rating
  UL94V-0
• Minimum Wire Size (AWG)
  #18
• Wire Strip Length (In.)
  5/16
• Barrel Length (In.)
  0.45
• Maximum Operating Temperature (°C)
  105
• Tongue Thickness (mm)
  0.8
• Tongue Width (mm)
  6.4
• Maximum Copper Conductor Size (AWG STR)
  #14
• Maximum Metric Conductor Size (mm²)
  2.5
• Wire Strip Length (mm)
  7.9
• Barrel Length (mm)
  11.4
• Stud Hole Size (In.)
  7/50
• Tongue Length (In.)
  0.45
• Fork Type
  Locking Fork
• Maximum Wire Size (AWG)
  #14
• Minimum Metric Conductor Size (mm²)
  1
• Finish/Coating
  Tin-Plated
Insulation Diameter (In.)
0.17
Color Code
Blue
Insulation Diameter (mm)
4.3
Overall Width (In.)
0.25
Packaging Type
Bottle
Minimum Copper Conductor Size (AWG SOL)
#18
Minimum Copper Conductor Size (AWG STR)
#18
Maximum Voltage (V)
600
CSA Temperature Rating (°C)
105
Seam Type
Brazed
Tongue Length (mm)
11.4
Product Type
Loose Piece Forks
Maximum Copper Conductor Size (AWG)
#14
Stud Size
#6
Base Material
Copper
Maximum Wire Insulation Diameter (In.)
0.17
Insulation Material
Vinyl
Insulation Type
Vinyl
Standards Met
UL Listed UL486A-486B ; CSA Certified C22.2 No.65
Barrel Type
Funnel
Maximum Wire Insulation Diameter (mm)
4.32
Stud Hole Size (mm)
3.6
Tongue Thickness (In.)
0.03
For Use With
CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Tongue Width (In.)
0.25
Part Features
Locks in place for secure connection Fork design provides for fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contac
PV14-6LF-C
6.4
Overall Length (In.)
0.9
Overall Width (mm)
6.35
Maximum Operating Temperature (°F)
221
Sub Brand
Pan-Term®
Overall Length (mm)
22.86
