Name: CD10.242
Brand: Puls

ML15.051

PULS ML15.051 is a power supply unit (PSU) / converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 3A at 5Vdc, with screw-clamp connections for secure installation. It supports a wide range of supply voltages from 85Vac to 264Vac (with specific nominal values listed) at 47-63Hz, featuring a 59Vac turn-ON voltage and a 54Vac shutdown voltage. Additionally, it accepts DC supply voltages between 88Vdc and 375Vdc. The ML15.051 is housed in a PC / ABS blend, measuring 22.5mm in width, 75mm in height, and 91mm in depth. It is compatible with single-phase (1AC) or DC networks, offering a rated power of 15W and an adjustable output voltage range of 5Vdc to 5.5Vdc. The unit includes an NTC for input inrush current limiting, achieves efficiencies of 0.772, 0.768, and 0.758 at 230Vac, 120Vac, and 100Vac inputs respectively, and has a current consumption with a peak max inrush of 16A at 120Vac input and 31A at 230Vac input. It features a 630ms start-up delay and a 10ms rise time at nominal input, with power dissipation/losses rated at 4.5W. The electrical durability of the ML15.051 is rated at a minimum of 93,000 hours at +40°C, and it maintains a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω, with an output stage capacitance of 4800µF.

Puls

CP10.241-S2

Verified stock: 4

PULS CP10.241-S2 is a DIN rail mounting power supply unit with an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and has a net width of 39 mm. The current consumption varies with input voltage, being 1.13A at 230Vac input, 2.15A at 120Vac input, 2.6A at 100Vac input, and 2.35A at 110Vdc input, with a peak inrush current of 11A at 230Vac input and 7A at 120Vac input. It offers an IP20 degree of protection and achieves an efficiency of 0.952 at 230Vac input and 0.936 at 120Vac input. The dimensions are W39mm x H124mm x D117mm. The start-up delay ranges from 240-300ms for 100-230Vac input, with a rise time of 30ms under nominal input and full constant current load without load capacitance, and 160ms with 10mF load capacitance. It features protection against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart in case of over-temperature conditions. The unit supports series/parallel operation for increased output voltages or power, and 1+1 redundancy with a redundancy module. It is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W at 230Vac input and 16.4W at 120Vac input, with an output stage capacitance of 4400µF. Electrical durability varies with conditions, reaching up to 499,000 hours at 40°C and 12A output with 1AC 230Vac input. The ripple is 50mVpp (20Hz...20MHz; 50Ω). This AC/DC power supply unit offers a 20% power reserve and includes ATEX approval, DC-OK relay contact output, and push-in spring connections. The supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. The rated current is 12A at 48Vdc from -25 to +45°C, 10A at 24Vdc from +45 to +60°C, and 7.5A at 24Vdc at +70°C. It is suitable for single-phase (1AC) or DC networks, with a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with linear derating between +60°C and +70°C. The output voltage is adjustable from 24Vdc to 28Vdc, with a 200mV turn-ON overshoot, and a hold time of 37ms at 120/230Vac input.

Puls

CPS20.121

Verified stock: 1

PULS CPS20.121 is a DIN rail mounting power supply unit with an aluminium housing designed for a wide range of industrial applications. It operates within an ambient air temperature range of -25 to +70°C and supports a net width of 65 mm. The unit consumes 1.8A, 3.3A, and 4A under 230Vac, 120Vac, and 100Vac input conditions respectively, with a peak inrush current of 13A at both 230Vac and 120Vac inputs. It boasts an efficiency of up to 0.926, 0.914, and 0.909 under 230Vac, 120Vac, and 100Vac inputs respectively. The dimensions are W65mm x H124mm x D127mm. It features a start-up delay of 700-900ms and rise times of 72ms and 120ms under nominal input conditions. The CPS20.121 includes protection functions such as output overvoltage protection and overload/short-circuit protection, with the capability for series or parallel operation to increase output power. It is designed to handle back-feeding loads up to 16V without malfunctioning. Power dissipation/losses are calculated at 28.8 W, with an output stage capacitance of 5600 µF. Its electrical durability ranges from 50,000 to 492,000 hours, depending on operating conditions. The ripple is maintained at 100mVpp. This AC/DC power supply unit offers a 20% power reserve, is part of the C-series, and includes ATEX approval, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage range of 85Vac-264Vac, with specific shutdown voltages under varying loads. The rated current is 30A at 12Vdc, with a rated power of 405W at 15Vdc and 360W at 12Vdc. The output voltage is adjustable between 12Vdc and 15Vdc, featuring a 200mV turn-ON overshoot and a hold time of 35ms.

Puls

ZM1.UBC10

Verified stock: 8

PULS ZM1.UBC10 is a mounting bracket designed for wall-mounting applications.

Puls

CP10.241

Verified stock: 8

PULS CP10.241 is a DIN rail mounting power supply unit housed in an aluminium casing, designed to operate within an ambient air temperature range of -25 to +70°C. It features a net width of 39 mm and offers a degree of protection rated at IP20. The unit consumes current at rates of 1.13A with a 230Vac input, 2.15A with a 120Vac input, 2.6A with a 100Vac input, and 2.35A with a 110Vdc input for a 24Vdc / 10A output, with peak inrush currents of 11A and 7A for 230Vac and 120Vac inputs respectively. Efficiency rates are noted at 0.952 for 230Vac input and 0.936 for 120Vac input. Dimensions are specified as W39mm x H124mm x D117mm. The unit exhibits a start-up delay of 240-300ms for 100-230Vac input, with rise times of 30ms and 160ms under specified conditions. It includes protection functions against output overvoltage, overload/short-circuit, and over-temperature, with automatic restart features. Series or parallel operation is supported for increased output voltages or power, including 1+1 redundancy with a redundancy module. The unit is resistant to back-feeding loads up to 35V. Power dissipation/losses are 12.1W and 16.4W for 230Vac and 120Vac inputs respectively, with an output stage capacitance of 4400µF. Electrical durability spans from 75,000 to 499,000 hours under various conditions. Ripple is maintained at 50mVpp. This AC/DC power supply unit, part of the CP-series, is designed with ATEX approval, a 20% power reserve, and a DC-OK relay contact output. Connection is facilitated via screw-clamp connections. Supply voltage ranges from 88Vdc-180Vdc for DC and 85Vac-264Vac for AC, with specific tolerances for overvoltage and shutdown voltages. Rated current is 12A at 48Vdc in temperatures up to +45°C, with adjustments for higher temperatures. It operates on a single-phase (1AC) or DC network, providing a rated power of 288W at -25 to +45°C, 240W at -25 to +60°C, and 180W at +70°C, with a linear derating between +60°C and +70°C. The output voltage is adjustable between 24Vdc and 28Vdc, featuring a 200mV turn-ON overshoot and a hold time of 37ms at 120/230Vac input.

Puls

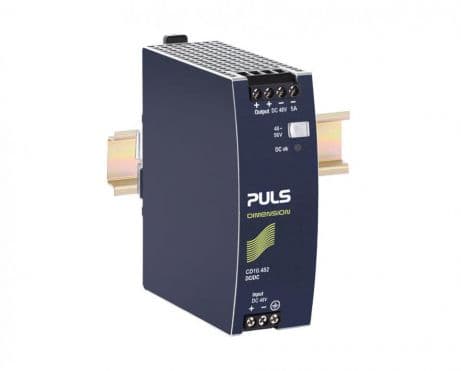

CD10.482

Verified stock: 0

PULS CD10.482 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing. It operates within an ambient air temperature range of -25 to +70°C and supports a supply voltage range of 39Vdc to 57Vdc, with a nominal 48Vdc. The unit provides an adjustable output voltage of 48Vdc to 56Vdc, including a 250mV turn-ON overshoot, and offers a rated current of 6A at 48Vdc in temperatures up to 45°C, 5A up to 60°C, and 3.8A at 70°C, with a power derating from 60°C to 70°C. It features a net width of 42mm and dimensions of W42mm x H124mm x D117mm. The CD10.482 has a current consumption of 5.3A with a 48Vdc input/output at 5A, 7A with a 36Vdc input for the same output, and a peak inrush current of 10A, independent of temperature. It achieves an efficiency of 0.951 with a 48Vdc 5A input and 0.949 with a 6A input. The unit includes a 350ms start-up delay and a 50ms rise time under nominal input with a constant full current load. It offers protection against output overvoltage, short circuits with a continuous current of max. 7A, and allows for series or parallel operation for increased output power or redundancy. The power dissipation/losses are 12.4W for a 48Vdc input/output load at 5A and 6.7W at 2.5A. The output stage capacitance is 1650µF, with a ripple of 100mVpp across 20Hz to 20MHz at 50Ω. It features screw-clamp connections, is designed with galvanic isolation, and includes reverse polarity protection.

Puls

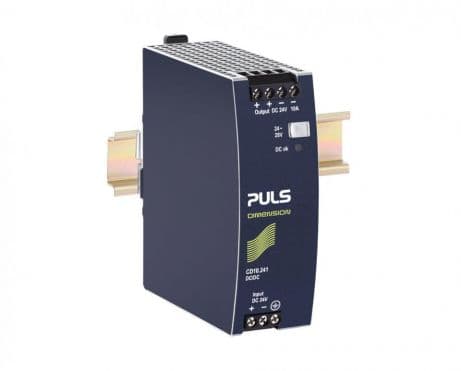

CD10.241

Verified stock: 0

PULS CD10.241 is a power supply unit designed for DIN rail mounting, featuring an aluminium housing with dimensions of W42mm x H124mm x D117mm. It operates within an ambient air temperature range of -25 to +70°C and supports a supply voltage range of 18Vdc to 35Vdc, with a nominal 24Vdc. The unit provides an adjustable output voltage of 23-28Vdc, including a 250mV turn-ON overshoot, and offers a rated current of 12A at 24Vdc in temperatures up to 45°C, 10A up to 60°C, and 7.5A up to 70°C, with a power derating from 6W at 60°C to 70°C. It features a 200ms start-up delay and a 200ms rise time under nominal input with a constant full current load and 0mF load capacitance. The CD10.241 has an efficiency of 0.942 at 24Vdc 10A input and 0.937 at 24Vdc 12A input. It includes protection functions such as output overvoltage protection, short-circuit protection, back-feeding load protection, and reverse polarity protection. The unit's power dissipation/losses are 14.7W at a 24Vdc input with a 24V output load at 10A, and 6.8W at 5A. It has an output stage capacitance of 4300µF and an electrical durability ranging from 56000 hours to 844000 hours, depending on the operating conditions. The CD10.241 also features a ripple of 50mVpp (20Hz to 20MHz; 50Ω) and includes screw-clamp connections for installation.

Puls

ZM2.WALL

Verified stock: 10

PULS ZM2.WALL is a mounting bracket designed specifically for wall-mounting applications. This part facilitates the secure attachment of compatible devices to wall surfaces, ensuring stable installation.
