105FX-SC-POE-MDR Red Lion Industrial Automation Components

105FX-SC-POE-MDR on Powermatic Associates
Red Lion

Part#:105FX-SC-POE-MDR

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

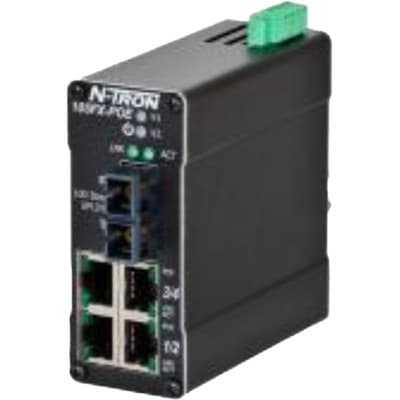

Red Lion 105FX-SC-POE-MDR is an industrial Ethernet switch designed for automation applications, featuring a supply voltage of 46-49Vdc with redundant power inputs. It includes 4 RJ45 ports supporting 10/100BaseTX with IEEE 802.3af/at PoE+ and one fiber optic SC connector for multi-mode 100BaseFX connections, with a 2km rated optical fiber length. The unit is housed in a metallic case suitable for tall enclosure (MDR - Metal DIN Rail) mounting, ensuring compatibility with DIN rail setups. It operates within an ambient air temperature range for storage of -40 to +85 degrees Celsius. This 5-port Ethernet switch utilizes Ethernet speed and is classified under the UNSPSC code for the N-Tron 100 series.

Product Details

  • Secondary brand
    N-Tron
  • Functions
    Industrial Ethernet switch
  • Mounting mode
    DIN rail
  • Contents
    Metal DIN rail clip
  • Main function
    Ethernet Switch
  • Connection capacity
    5-ports
  • Compliant with standard(s)
    CE EN 55011 ABS UL RoHS compliant ABS UL Class 1 Division 2 Hazardous locations
  • Product series / family name
    Ethernet switches
  • Design
    tall encl. (MDR - Metal DIN Rail)
  • Connection type
    4 x RJ45 ports (10/100BaseTX) (with IEEE 802.3af/at PoE+) 1 x Fiber optic SC connector (multi-mode; 100BaseFX; 2km rated optical fiber)
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    46-49Vdc (48Vdc) (redundant pwr. inputs)
  • Communication protocol
    Ethernet
  • Order code / Manufacturer SKU
    105FX-SC-POE-MDR
  • Sub-range name
    N-Tron 100 series
  • Material
    Metallic case
  • Equivalent to
    105FXSCPOEMDR
  • Ambient air temperature for operation
    -40...+85 °C
  • Benefits
    Compact / Space Saving Package Unmanaged operation Extended environmental specifications Automatic Detection of Connected PoE Devices Support for Full/Half Duplex Operation Auto-sensing Duplex / Speed / MDIX (RJ-45) Full wire speed communications Power Fa

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

105FX-SC-POE-MDR Related Documents

Red Lion - N-Tron 100 Series Unmanaged switches - Product Manual.pdfRed Lion - N-Tron 105M12 108M12 Unmanaged switches - Product Manual.pdf
