105FX-ST-POE Red Lion Industrial Automation Components

105FX-ST-POE on Powermatic Associates
Red Lion

Part#:105FX-ST-POE

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

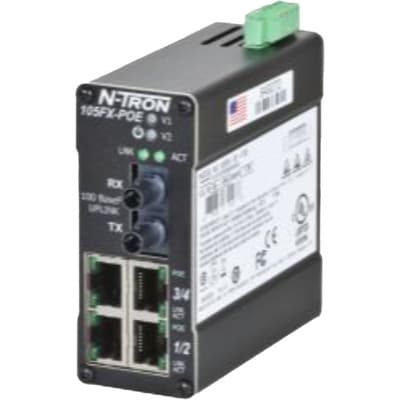

Red Lion 105FX-ST-POE is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage of 46-49Vdc, specifically 48Vdc, and includes redundant power inputs for enhanced reliability. This model features 4 RJ45 ports supporting 10/100BaseTX with IEEE 802.3af/at Power over Ethernet Plus (PoE+) capabilities, alongside 1 fiber optic ST connector for multi-mode fiber with a 100BaseFX rating and a 2km rated optical fiber length. The ambient air temperature range for storage is specified from -40 to +85 degrees Celsius. The switch is designed for DIN rail mounting and is enclosed in a metallic case. It is part of the N-Tron 100 series, as indicated by its UNSPSC code, and is characterized by its 5-port configuration.

Product Details

  • Main function
    Ethernet Switch
  • Functions
    Industrial Ethernet switch
  • Supply voltage (DC)
    46-49Vdc (48Vdc) (redundant pwr. inputs)
  • Equivalent to
    105FXSTPOE
  • Connection type
    4 x RJ45 ports (10/100BaseTX) (with IEEE 802.3af/at PoE+) 1 x Fiber optic ST connector (multi-mode; 100BaseFX; 2km rated optical fiber)
  • Ambient air temperature for operation
    -40...+85 °C
  • Secondary brand
    N-Tron
  • Connection capacity
    5-ports
  • Material
    Metallic case
  • Benefits
    Compact / Space Saving Package Unmanaged operation Extended environmental specifications Automatic Detection of Connected PoE Devices Support for Full/Half Duplex Operation Auto-sensing Duplex / Speed / MDIX (RJ-45) Full wire speed communications Power Fa
  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 100 series
  • Communication protocol
    Ethernet
  • Order code / Manufacturer SKU
    105FX-ST-POE
  • Product series / family name
    Ethernet switches
  • Mounting mode
    DIN rail
  • Compliant with standard(s)
    CE EN 55011 ABS UL RoHS compliant ABS UL Class 1 Division 2 Hazardous locations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
