105TX Red Lion Industrial Automation Components

105TX on Powermatic Associates
Red Lion

Part#:105TX

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

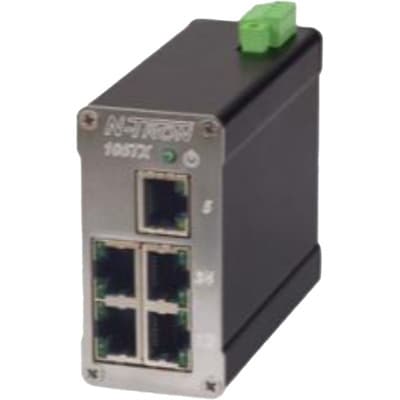

Red Lion 105TX is an industrial Ethernet switch designed for automation applications, featuring a metallic case and DIN rail mounting mode for easy installation. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This switch does not require an AC supply voltage, and it is built to withstand ambient air temperatures ranging from -40 to +80°C. With 5 RJ45 ports supporting 10/100BaseTX connections, the 105TX facilitates a maximum throughput of 1Gbit/s, ensuring efficient data communication. It is part of the N-Tron 100 series and offers an IP30 degree of protection, making it suitable for various industrial environments. The communication protocol used by this device is Ethernet, and it has a connection capacity of 5 ports.

Product Details

  • Connection type
    5 x RJ45 ports (10/100BaseTX)
  • Ambient air temperature for operation
    -40...+80 °C
  • Main function
    Ethernet Switch
  • Sub-range name
    N-Tron 100 series
  • Mounting mode
    DIN rail
  • Degree of protection
    IP30
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-6-4 RoHS compliant UL Class 1 Division 2 Hazardous locations
  • Order code / Manufacturer SKU
    105TX
  • Product series / family name
    Ethernet switches
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Speed
    Maximum throughput 1Gbit/s
  • Replaces
    NT105TX0
  • Primary brand
    Red Lion
  • Functions
    Industrial Ethernet switch
  • Communication protocol
    Ethernet
  • Benefits
    Compact Size / Small Footprint Extended environmental specifications Hardened metal DIN rail enclosure High Performance High MTBF >2M Hours ESD Protection Diodes on RJ-45 Ports Surge Protection Diodes on Power Inputs
  • Secondary brand
    N-Tron
  • Connection capacity
    5-ports
  • Material
    Metallic case

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
