509FXE-A-SC-40 Red Lion Industrial Automation Components

509FXE-A-SC-40 on Powermatic Associates
Red Lion

Part#:509FXE-A-SC-40

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion 509FXE-A-SC-40 is an Ethernet Switch designed for industrial process control with monitored Ethernet switch capabilities. It features IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. This switch operates on a supply voltage of 10-30Vdc, including redundant power inputs, and offers connectivity through 8 RJ45 ports (10/100BaseTX) and 1 Fiber optic SC connector (single-mode) with a 100BaseFX rated current and a 40km rated optical fiber length. It incorporates advanced management firmware, supports an ambient air temperature for storage of -40 to +85 degrees Celsius, and achieves a maximum throughput of 2.6Gbit/s. The component utilizes DIN rail technology, has a metallic case, and is specified as a 9-ports device within the N-Tron 500-A series, adhering to the UNSPSC code.

Product Details

  • Equivalent to
    509FXEASC40
  • Functions
    Industrial process control monitored Ethernet switch IGMP Auto Configuration VLAN QoS Trunking or Link aggregation Port Mirroring N-View Remote Monitoring Technology
  • Main function
    Ethernet Switch
  • Design
    advanced mngmt. firmware
  • Speed
    Maximum throughput 2.6Gbit/s
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron 500-A series
  • Communication protocol
    Ethernet
  • Compliant with standard(s)
    CE IEC 61850-3 IEC 1613 UL Class 1 Division 2 Hazardous locations
  • Primary brand
    Red Lion
  • Product series / family name
    Ethernet switches
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Material
    Metallic case
  • Connection capacity
    9-ports
  • Mounting mode
    DIN rail
  • Connection type
    8 x RJ45 ports (10/100BaseTX) 1 x Fiber optic SC connector (single-mode; 100BaseFX; 40km rated optical fiber)
  • Ambient air temperature for operation
    -40...+85 °C
  • Order code / Manufacturer SKU
    509FXE-A-SC-40
  • Benefits
    Auto-sensing 10/100BaseTX / Duplex / MDIX Store-and-Forward technology Rugged industrial DIN rail enclosure Bi-Color LEDs For Link / Speed / Activity / Duplex Status

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

509FXE-A-SC-40 Related Documents

Red Lion - N-View OPC - Data Sheet.pdfRed Lion - N-Tron 500 Series Ethernet switches - Product Manual.pdfRed Lion - N-View OPC - Product Manual.pdfRed Lion - N-View 2 - Software Manual.pdfRed Lion - N-View 2 - Data Sheet.pdf

Similar products from: Red Lion Industrial Automation Components

G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

Red Lion PAXLBK25 is a label kit designed for marking purposes.

15 in stock
104TX on Powermatic Associates

104TX

Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
C48CS003 on Powermatic Associates

C48CS003

Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 DIN (48x48mm) enclosure. It operates on a supply voltage range of 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, and also supports a DC supply voltage of 11-14Vdc, specifically 12Vdc. The dimensions of this counter are standardized to 1/16 DIN, measuring W48mm x H48mm (1.89" x 1.89"). It offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. The C48CS003 features 1 high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated as USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. For output, it provides 1 digital output (NPN) and 1 digital output (contact type NO).

1 in stock
G10S0000 on Powermatic Associates

G10S0000

Red Lion

Red Lion G10S0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for both indoor and outdoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port supporting both RS-422 and RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G10S0000 is equipped with 7 module slots for connection capacity, and its power consumption is typically 18 W, with a maximum of 53 W. The electrical durability of the backlight is rated at 35,000 hours. For storage, it includes an SD card slot, and it boasts a brightness level of 2500cd/m2.

1 in stock
GK002297 on Powermatic Associates

GK002297

Red Lion

1/8 DIN Gasket

37 in stock

Manufacturer warranty

509FXE-A-SC-40 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 509FXE-A-SC-40 with other Industrial Automation Components products

Equivalent to

Functions

Main function

Design

Speed

Secondary brand

Sub-range name

Communication protocol

Compliant with standard(s...

Primary brand

Selected product

509FXE-A-SC-40
Backordered
509FXE-A-SC-40
Red Lion

Red Lion 509FXE-A-SC-40 is an Ethernet Switch designed for industrial process control with monitored...

Equivalent to509FXEASC40

FunctionsIndustrial process control m...

Main functionEthernet Switch

Designadvanced mngmt. firmware

SpeedMaximum throughput 2.6Gbit/s

Secondary brandN-Tron

Sub-range nameN-Tron 500-A series

Communication protocolEthernet

Compliant with standard(s)CE IEC 61850-3 IEC 1613 UL C...

Primary brandRed Lion

104TX
2 in stock
104TX
Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a...

Equivalent to-

FunctionsIndustrial Ethernet switch

Main functionEthernet Switch

Design-

Speed-

Secondary brandN-Tron

Sub-range nameN-Tron 100 series

Communication protocolEthernet

Compliant with standard(s)-

Primary brandRed Lion

G07C0000
2 in stock
G07C0000
Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor u...

Equivalent to-

FunctionsHMI operator touchscreen pan...

Main functionHMI / Display unit

Designfor indoor use only

Speed-

Secondary brand-

Sub-range nameHMI Rugged Graphite series

Communication protocolRS-232 RS-422 RS-485 Etherne...

Compliant with standard(s)-

Primary brandRed Lion

About the manufacturer

Red Lion

Powermatic Associates is an authorized Red Lion distributor, proudly offering a wide range of their innovative industrial automation and networking products. Red Lion Controls has been a leader in delivering reliable solutions for over 50 years, specializing in advanced communication, monitoring, and control for diverse industries. Their comprehensive product line includes cutting-edge HMI operato...

Recently viewed products

Relevant products

509FXE-A-ST-15 on Powermatic Associates

509FXE-A-ST-15

Verified stock: 0

Red Lion 509FXE-A-ST-15 is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities. It features IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. This model operates on a supply voltage of 10-30Vdc, including redundant power inputs, and offers connectivity through 8 RJ45 ports (10/100BaseTX) and 1 Fiber optic ST connector (single-mode) with a 15km rated optical fiber length for 100BaseFX. It includes advanced management firmware, supports an ambient air temperature for storage of -40 to +85 degrees Celsius, and achieves a maximum throughput of 2.6Gbit/s. The component utilizes DIN rail technology, is encased in a metallic case, and is specified as a 9-port device within the N-Tron 500-A series, adhering to the UNSPSC code.

Red Lion

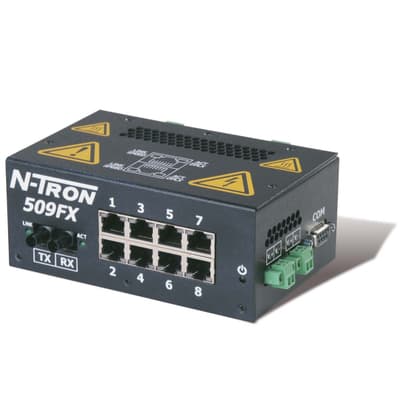

509FXE-A-ST-40 on Powermatic Associates
