516TX-A Red Lion Industrial Automation Components

516TX-A on Powermatic Associates
Red Lion

Part#:516TX-A

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

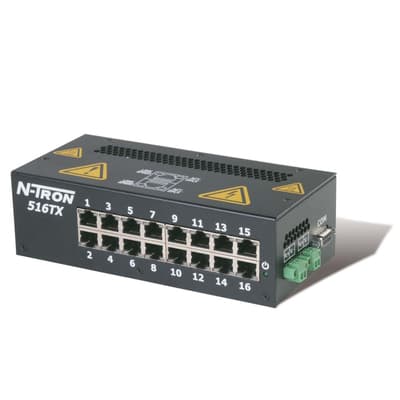

Red Lion 516TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage. This model comes with 16 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. The 516TX-A, part of the N-Tron 500-A series, is designed for DIN rail mounting and is encased in a metallic body. It operates within an ambient air temperature range of -40 to +85°C and utilizes Ethernet as its communication protocol.

Product Details

  • Connection capacity
    16-ports
  • Mounting mode
    DIN rail
  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 500-A series
  • Connection type
    16 x RJ45 ports (10/100BaseTX)
  • Equivalent to
    516TXA
  • Product series / family name
    Ethernet switches
  • Communication protocol
    Ethernet
  • Compliant with standard(s)
    CE IEC 61850-3 IEC 1613 UL Class 1 Division 2 Hazardous locations
  • Benefits
    Auto-sensing 10/100BaseTX / Duplex / MDIX Store-and-Forward technology Rugged industrial DIN rail enclosure Bi-Color LEDs For Link / Speed / Activity / Duplex Status
  • Main function
    Ethernet Switch
  • Functions
    Industrial process control monitored Ethernet switch IGMP Auto Configuration VLAN QoS Trunking or Link aggregation Port Mirroring N-View Remote Monitoring Technology
  • Ambient air temperature for operation
    -40...+85 °C
  • Order code / Manufacturer SKU
    516TX-A
  • Secondary brand
    N-Tron
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Material
    Metallic case
  • Speed
    Maximum throughput 2.6Gbit/s

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

516TX-A Related Documents

Red Lion - N-View OPC - Product Manual.pdfRed Lion - N-Tron 500 Series Ethernet switches - Product Manual.pdfRed Lion - N-View OPC - Data Sheet.pdfRed Lion - N-View 2 - Software Manual.pdfRed Lion - N-View 2 - Data Sheet.pdf
