CUB5IR00 Red Lion Industrial Automation Components

CUB5IR00 on Powermatic Associates
Red Lion

Part#:CUB5IR00

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

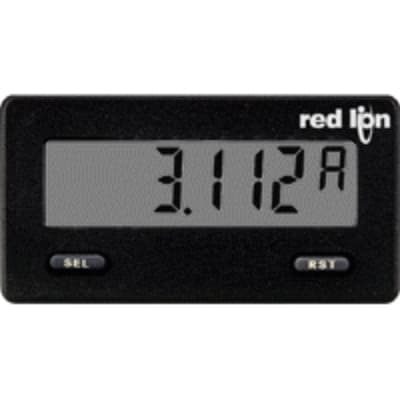

Red Lion CUB5IR00 is a digital ammeter designed for precise DC current measurement within automation systems. It features one analog input that supports a range of 0-200µA, 0-2mA, 0-20mA, to 0-200mA DC, catering to a variety of monitoring needs. This part falls under the CUB5 LP CL sub-range and boasts a compact design with dimensions of W75xH39mm (3"x 1.5"), making it suitable for installations where space is limited. It operates on a supply voltage of 9-28Vdc, accommodating both 12Vdc and 24Vdc systems. The CUB5IR00 is also equipped with an IP65 NEMA 4X degree of protection, ensuring its durability and resilience in harsh environmental conditions.

Product Details

  • Sub-range name
    CUB5 LP CL
  • Product series / family name
    Process indicators
  • Degree of protection
    IP65 NEMA 4X
  • Functions
    DC current digital ammeter
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    9-28Vdc (12Vdc / 24Vdc)
  • Design
    W75xH39mm (3"x 1.5")
  • Main function
    Ammeter (Digital)
  • Display
    1 row x 5-digits black characters (12.2mm / 0.48" high) positive image reflective LCD display
  • Analog inputs
    1 x analog input (0-200μA / 0-2mA / 0-20mA / 0-200mA DC)
  • Order code / Manufacturer SKU
    CUB5IR00
  • Compliant with standard(s)
    CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
