G303S000 Red Lion Industrial Automation Components

G303S000 on Powermatic Associates
Red Lion

Part#:G303S000

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

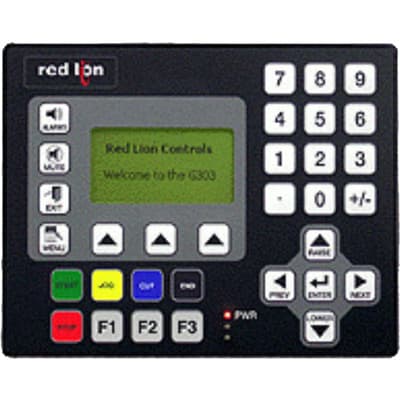

Red Lion G303S000 is an HMI / Display unit within the HMI G303 series, designed as an HMI operator touchscreen panel with soft keys suitable for both indoor and outdoor use. It features a variety of connection types including 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communications. The device supports multiple communication protocols such as RS-232, RS-422, RS-485, and Ethernet. It operates on a supply voltage range of 19.2-28.8Vdc, specifically designed for 24Vdc systems. The G303S000 is built to function within an ambient air temperature range of 0 to +50°C and offers a high degree of protection with an IP66 and NEMA 4X rating. It comes equipped with a 4MB FLASH memory capacity and includes a Compact Flash (CF) slot for storage expansion. At its core, the device utilizes a 32-bit ColdFire CPU for processing.

Product Details

  • Main function
    HMI / Display unit
  • Memory capacity
    4MB (FLASH)
  • Display
    3.2" / 128x64pixels FSTN LCD monochrome display with yellow L.E.D. backlight with 32-btns. keypad + 8 relegendable function keys
  • Design
    soft Keys for indoor / outdoor use
  • Ambient air temperature for operation
    0...+50 °C
  • Contents
    Panel gasket Two user legendable key sheets Template for panel cutout Hardware packet for mounting unit into panel Terminal block for connecting power
  • Product series / family name
    HMIs (Human-Machine Interfaces)
  • Connection type
    1 x RJ45 port (Ethernet) 2 x RJ11 ports (RS-232) 1 x RJ45 port (RS-422 / RS-485)
  • Order code / Manufacturer SKU
    G303S000
  • Storage type
    Compact Flash (CF) slot
  • Primary brand
    Red Lion
  • Functions
    HMI operator touchscreen panel
  • Sub-range name
    HMI G303 series
  • Supply voltage (DC)
    19.2-28.8Vdc (24Vdc)
  • Degree of protection
    IP66 NEMA 4X
  • Mounting location
    Outdoor Indoor
  • Communication protocol
    RS-232 RS-422 RS-485 Ethernet
  • Compliant with standard(s)
    CE IEC/EN 61010-1 IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations UL Listed RoHS compliant UL Hazardous locations approval
  • Processor type
    32-bit ColdFire CPU
  • Benefits
    Configured using Crimson 2.0 software Up to 5 RS-232/RS422/RS-485 communications ports (2 RS-232 and 1 RS422/RS-485 on board / 1 RS-232 and 1 RS422/RS-485 on optional communications card) 10BaseT / 100BaseTx Ethernet port to network units and host web pag

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

G303S000 Related Documents

Red Lion - Industrial Automation Product Guide.pdfRed Lion - G303 HMIs - Product Manual.pdf

Similar products from: Red Lion Industrial Automation Components

DA10D0C000000000 on Powermatic Associates

DA10D0C000000000

Red Lion

Red Lion DA10D0C000000000, part of the FlexEdge DA10D series, is a gateway designed for protocol conversion and data acquisition. It features a design that includes 1 x RS-232 (serial port), 1 x RS-232 / RS-485 (serial port), and 1 x Ethernet (RJ45; 10/100BaseTx) with an SD card slot for expanded functionality. The connection types available are 1 x RJ45 port (10/100BaseTX) for Ethernet connectivity, 1 x RJ12 port (RS-232 serial port), and 1 x RJ45 port (RS-232 / RS-485 serial port), supporting a range of communication protocols including RS-232, RS-485, and Ethernet. It operates on a supply voltage (DC) of 19.2-28.8Vdc, accommodating various industrial power supplies.

1 in stock
G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

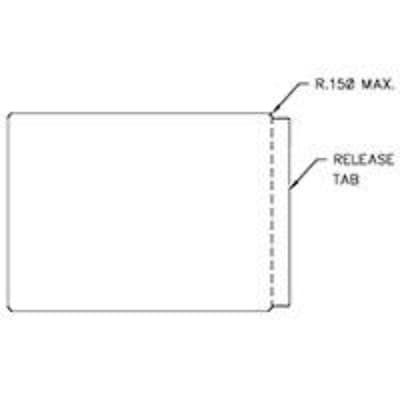

Red Lion PAXLBK25 is a label kit designed for marking purposes.

15 in stock
104TX on Powermatic Associates

104TX

Red Lion

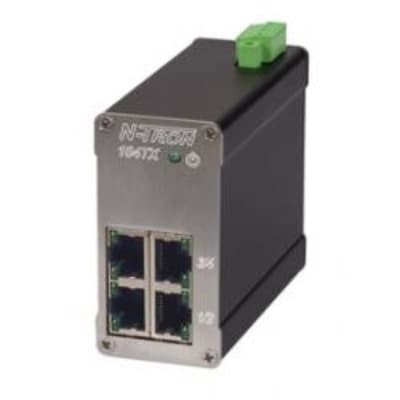

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
G10S0000 on Powermatic Associates

G10S0000

Red Lion

Red Lion G10S0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for both indoor and outdoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port supporting both RS-422 and RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G10S0000 is equipped with 7 module slots for connection capacity, and its power consumption is typically 18 W, with a maximum of 53 W. The electrical durability of the backlight is rated at 35,000 hours. For storage, it includes an SD card slot, and it boasts a brightness level of 2500cd/m2.

1 in stock
C48CS003 on Powermatic Associates

C48CS003

Red Lion

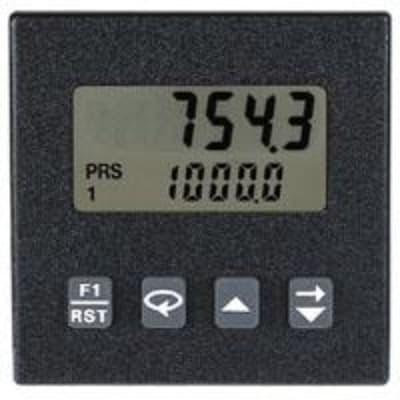

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 DIN (48x48mm) enclosure. It operates on a supply voltage range of 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, and also supports a DC supply voltage of 11-14Vdc, specifically 12Vdc. The dimensions of this counter are standardized to 1/16 DIN, measuring W48mm x H48mm (1.89" x 1.89"). It offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. The C48CS003 features 1 high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated as USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. For output, it provides 1 digital output (NPN) and 1 digital output (contact type NO).
