MIL316-MMMM Red Lion Industrial Automation Components

MIL316-MMMM on Powermatic Associates
Red Lion

Part#:MIL316-MMMM

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

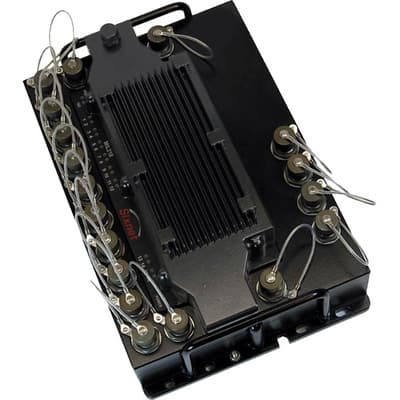

12-ports Industrial MIL-STD Gigabit (GbE/GigE) industrial managed Ethernet switch - layer 3 - Red Lion / Sixnet (Ethernet switches Sixnet MIL300 series) - 12 x MIL-STD-38999 series III connectors (10/100/1000BaseTX) + 4 x Gigabit multi-mode Fiber Optic po

Product Details

  • Product series / family name
    Ethernet switches
  • Design
    layer 3
  • Degree of protection
    IP67
  • Ambient air temperature for operation
    -40...+75 °C
  • Connection type
    12 x MIL-STD-38999 series III connectors (10/100/1000BaseTX) 4 x Gigabit multi-mode Fiber Optic ports
  • Mounting mode
    Surface Bulkhead
  • Order code / Manufacturer SKU
    MIL316-MMMM
  • Primary brand
    Red Lion
  • Sub-range name
    Sixnet MIL300 series
  • Functions
    Industrial MIL-STD Gigabit (GbE/GigE) industrial managed Ethernet switch Routing Protocols IP v1; v2; OSPF; static routing Virtual Routing Redundancy Protocol (VRRP) Managed Features SSH; Telnet; HTTP/ HTTPS (SSL and TLS); VLAN (tag and port based); IGMPv
  • Compliant with standard(s)
    CE IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.1D/w IEEE 802.1p IEEE 802.1Q MIL-STD-810G MIL-STD-461F MIL-STD-1275D
  • Main function
    Ethernet Switch
  • Connection capacity
    12-ports
  • Material
    Metallic case
  • Product replaced by
    708M12 716M12 NT24k-16M12
  • Secondary brand
    Sixnet
  • Supply voltage (DC)
    20-36Vdc (24Vdc)
  • Communication protocol
    Ethernet
  • Equivalent to
    MIL316MMMM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
