NT24K-DR16-DC-PT Red Lion Industrial Automation Components

NT24K-DR16-DC-PT on Powermatic Associates
Red Lion

Part#:NT24K-DR16-DC-PT

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

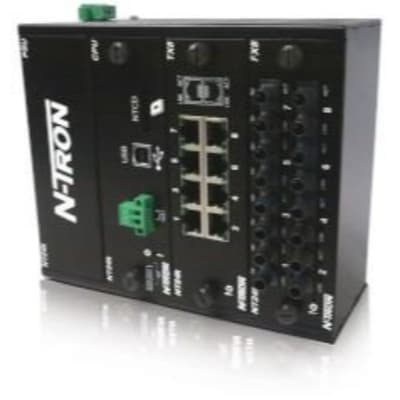

Red Lion NT24K-DR16-DC-PT is an all-Gigabit (GbE/GigE) modular industrial managed Ethernet switch designed for robust and complex networking environments. It supports SNMP v1, v2, v3, and Web Browser Management for comprehensive network management and security features including SSH/SSL/HTTPS, IEEE 802.1x with RADIUS Remote Server Authentication, and more. This switch utilizes Multi-Member N-Ring Technology offering 30ms healing for network resilience, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network visibility and reliability. It is equipped with EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, SNTP, an Event Log/Syslog, Port Trunking, and Port Mirroring. The switch can handle up to 16k MAC addresses, is designed for DIN rail mounting, operates within an ambient air temperature range of -40 to +75°C, and features a PTP version design. Connection is facilitated through 2 x port modules within its 2-slot capacity, suitable for the N-Tron NT24k series. It operates on a supply voltage of 18-49Vdc, specifically designed for 24Vdc or 48Vdc systems, and is encased in a metallic housing. The communication protocol supported is Ethernet, ensuring compatibility with a wide range of industrial networking requirements.

Product Details

  • Functions
    All-Gigabit (GbE/GigE) modular industrial managed Ethernet switch SNMP v1; v2; v3 and Web Browser Management SSH/SSL/HTTPS IEEE 802.1x with RADIUS Remote Server Authentication Multi-Member N-Ring Technology with 30ms Healing N-Link Redundant Ring Technolo
  • Mounting mode
    DIN rail
  • Compliant with standard(s)
    CE IEEE 1588v2 EN 55011 EN 61000-6-4 ABS UL RoHS compliant ABS
  • Product series / family name
    Ethernet switches
  • Sub-range name
    N-Tron NT24k series
  • Ambient air temperature for operation
    -40...+75 °C
  • Material
    Metallic case
  • Benefits
    Extended environmental specifications Plug-and-Play operation Robust Remote Monitoring N-Ring & N-Link Network Ring Technology Fully Managed Features Include
  • Communication protocol
    Ethernet
  • Equivalent to
    NT24KDR16DCPT
  • Supply voltage (DC)
    18-49Vdc (24Vdc / 48Vdc)
  • Design
    PTP version
  • Connection capacity
    2-slots
  • Primary brand
    Red Lion
  • Main function
    Ethernet Switch
  • Order code / Manufacturer SKU
    NT24K-DR16-DC-PT
  • Secondary brand
    N-Tron
  • Connection type
    2 x port modules

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
