NT24K-16M12-POE-PT Red Lion Industrial Automation Components

NT24K-16M12-POE-PT on Powermatic Associates
Red Lion

Part#:NT24K-16M12-POE-PT

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

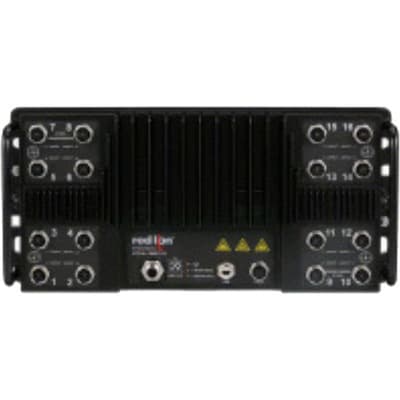

Red Lion NT24k-16M12-POE-PT is a Gigabit (GbE/GigE) industrial managed Ethernet switch designed for robust performance in demanding environments. It features 16 x 4-pin M12 connectors (X-coded) for 10/100/1000BaseTX connections, supporting a wide range of functions including Jumbo Frame Support, SNMP v1, v2, v3, SSH/SSL/HTTPS for secure web browser management, and detailed ring map and fault location charting for efficient network management. The switch is equipped with 802.1d, 802.1w, 802.1D RSTP for network resilience, port trunking and mirroring for enhanced data flow, and 802.1Q tag VLAN and Port VLAN for network segmentation. It also supports 802.1x with RADIUS for secure remote server authentication, 802.1p QoS, Port QoS, and DSCP for traffic prioritization, along with DHCP Client, Event Log/Syslog, and SNTP for accurate timekeeping. The NT24k-16M12-POE-PT utilizes Multi-Member N-Ring Technology with a 30ms healing time, N-Link Redundant Ring Technology, and N-View Monitoring and Firmware Management Technology for network reliability and visibility. It also features EtherNet/IP CIP Messaging and IGMP Auto Configuration for easy integration and setup. Designed for surface or bulkhead mounting, it operates within an ambient air temperature range of -40 to +85°C and offers an IP67 degree of protection, ensuring durability in harsh conditions. The switch is powered by a 10-49Vdc supply voltage and is housed in a metallic case, making it suitable for a wide range of industrial applications.

Product Details

  • Connection capacity
    16-ports
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    10-49Vdc (12Vdc / 24Vdc / 48Vdc)
  • Design
    PTP version
  • Material
    Metallic case
  • Order code / Manufacturer SKU
    NT24K-16M12-POE-PT
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron NT24k PoE series
  • Main function
    Ethernet Switch
  • Mounting mode
    Surface Bulkhead
  • Equivalent to
    NT24k16M12POEPT
  • Product series / family name
    Ethernet switches
  • Communication protocol
    Ethernet
  • Compliant with standard(s)
    CE IEEE 1588v2 EN 55011 EN 61000-6-4 ABS UL RoHS compliant ABS
  • Benefits
    Extended environmental specifications Plug-and-Play operation Robust Remote Monitoring N-Ring & N-Link Network Ring Technology Fully Managed Features Include
  • Ambient air temperature for operation
    -40...+85 °C
  • Degree of protection
    IP67
  • Functions
    Gigabit (GbE/GigE) industrial managed Ethernet switch Jumbo Frame Support SNMP v1; v2; v3 SSH/SSL/HTTPS Web Browser Management Detailed Ring Map and Fault Location Charting 802.1d; 802.1w; 802.1D RSTP Port Trunking and Mirroring 802.1Q tag VLAN and Port V
  • Connection type
    16 x 4-pin M12 connectors (X-coded) (10/100/1000BaseTX)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

NT24K-16M12-POE-PT Related Documents

Red Lion - NT24k Ethernet Switches - Hardware Manual.pdfRed Lion - NT24k Modular Rackmount Switches - Hardware Manual.pdfRed Lion - NT24k Ethernet switches - User Manual.pdfRed Lion - N-View 2 - Software Manual.pdfRed Lion - N-View 2 - Data Sheet.pdfRed Lion - N-View OPC - Product Manual.pdfRed Lion - NT24k Modular Rackmount Switches - Data Sheet.pdfRed Lion - NT24k Ethernet switches - CIP User Manual.pdfRed Lion - N-View OPC - Data Sheet.pdf
