P4800011 Red Lion Industrial Automation Components

P4800011 on Powermatic Associates
Red Lion

Part#:P4800011

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

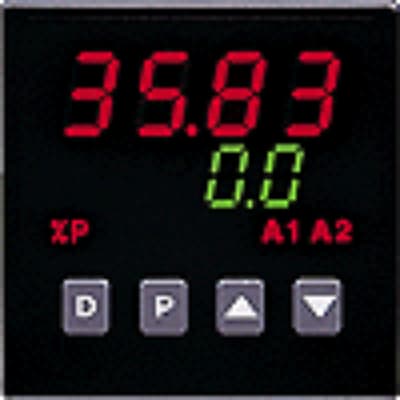

Process input PID controller - 1/16 DIN (48x48mm) - can be used as temperature / pressure / flow controller - Red Lion (Process controllers P48 PID controllers series) - with 1 x analog input (4-20mA / 0-20mA / 0-10V; 10mV/10μA conversion resolution; 100m

Product Details

  • Sub-range name
    P48 PID controllers series
  • Mounting mode
    Flush
  • Order code / Manufacturer SKU
    P4800011
  • Primary brand
    Red Lion
  • Supply voltage (AC)
    24Vac
  • Main function
    PID controller (Digital)
  • Design
    1/16 DIN (48x48mm) can be used as temperature / pressure / flow controller
  • Frequency
    10Hz analog input sampling rate
  • Benefits
    PID control with reduced overshoot Optional dual alarm outputs Optional remote setpoint input Optional RS-485 serial communications Second setpoint setting Setpoint ramping for process startup Programmable user input (digital) for added flexibility Parame
  • Product series / family name
    Process controllers
  • Supply voltage (DC)
    18-36Vdc (24Vdc)
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-10V; 10mV/10μA conversion resolution; 100ms sample period; 300ms response time) (Main process input)
  • Compliant with standard(s)
    CE IEC/EN 61010-1 IEC 60068-2-6 (vibration) EN 55011 RF interference UL 873 recognized CSA
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Functions
    Process input PID controller
  • Degree of protection
    IP65 NEMA 4X
  • Product replaced by
    PXU300B0 PXU400B0
  • Analog outputs
    1 x analog output (0-20mA / 4-20mA / 0-10Vdc; 1/2800...1/3500 conversion resolution) (Main output)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

P4800011 Related Documents

Red Lion - T48 P48 TLA Output Board - Product Manual.pdfRed Lion - T48-P48 - Instruction Manual.pdf
