PXU31A50 Red Lion Industrial Automation Components

PXU31A50 on Powermatic Associates
Red Lion

Part#:PXU31A50

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PXU31A50 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C and a network frequency of 50/60 Hz. It features a 1/4 DIN size (96x96mm) with 22mm orange and 14mm green digits for display, and it operates on a supply voltage of 100-240Vac, accommodating a variety of standard voltages (100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac). This model, part of the PXU PID controllers series, offers a degree of protection rated at IP65 NEMA 4X. It has a 10Hz analog input sampling rate and utilizes the RS-485 communication protocol. The PXU31A50 includes 1 digital output (contact type) for secondary control, 1 analog input supporting multiple signal types (4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, various thermocouples, and RTD) with a 100ms sample period and 0.1 to 1° accuracy, and 1 analog output (4-20mA) for main control. Additionally, it is equipped with heater current monitoring protection functions and 2 digital inputs for user-defined applications.

Product Details

  • Main function
    Temperature controller (Digital)
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Digital inputs
    2 x digital inputs (user inputs)
  • Primary brand
    Red Lion
  • Communication protocol
    RS-485
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Product series / family name
    Process controllers
  • Functions
    Digital temperature / process PID controller
  • Design
    2 user inputs RS-485 4-20mA control analog output secondary rly. control output 1/4 DIN (96x96mm) 22mm orange / 14mm green digits
  • Degree of protection
    IP65 NEMA 4X
  • Frequency
    10Hz analog input sampling rate
  • Sub-range name
    PXU PID controllers series
  • Mounting mode
    Flush
  • Dimensions
    1/4 DIN (W96mm x H96mm / 3.77" x 3.77")
  • Order code / Manufacturer SKU
    PXU31A50
  • Display
    2 rows x 4-digits negative backlit LCD display with orange characters (top row; 22mm high) and green characters (bottom row; 14mm high)
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Protection functions
    Heater current monitoring
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Analog outputs
    1 x analog output (4-20mA) (MAIN CONTROL OUTPUT)
  • Network frequency
    50/60 Hz
  • Ambient air temperature for operation
    0...+50 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PXU31A50 Related Documents

Red Lion - PXU - Data Sheet.pdfRed Lion - PXU - Manual.pdfRed Lion - PXU - Installation Guide.pdf

Similar products from: Red Lion Industrial Automation Components

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

1 in stock
G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

Red Lion PAXLBK25 is a label kit designed for marking purposes.

16 in stock
104TX on Powermatic Associates

104TX

Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
C48CS003 on Powermatic Associates

C48CS003

Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 DIN (48x48mm) enclosure. It operates on a supply voltage range of 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, and also supports a DC supply voltage of 11-14Vdc, specifically 12Vdc. The dimensions of this counter are standardized to 1/16 DIN, measuring W48mm x H48mm (1.89" x 1.89"). It offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. The C48CS003 features 1 high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated as USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. For output, it provides 1 digital output (NPN) and 1 digital output (contact type NO).

1 in stock
G10S0000 on Powermatic Associates

G10S0000

Red Lion

Red Lion G10S0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for both indoor and outdoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port supporting both RS-422 and RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G10S0000 is equipped with 7 module slots for connection capacity, and its power consumption is typically 18 W, with a maximum of 53 W. The electrical durability of the backlight is rated at 35,000 hours. For storage, it includes an SD card slot, and it boasts a brightness level of 2500cd/m2.

1 in stock

Manufacturer warranty

PXU31A50 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare PXU31A50 with other Industrial Automation Components products

Main function

Supply voltage (AC)

Digital inputs

Primary brand

Communication protocol

Digital outputs

Compliant with standard(s...

Product series / family n...

Functions

Design

Selected product

PXU31A50
Backordered
PXU31A50
Red Lion

Red Lion PXU31A50 is a digital temperature/process PID controller designed for flush mounting with a...

Main functionTemperature controller (Digi...

Supply voltage (AC)100-240Vac (100Vac / 110Vac ...

Digital inputs2 x digital inputs (user inp...

Primary brandRed Lion

Communication protocolRS-485

Digital outputs1 x digital output (contact ...

Compliant with standard(s)CE EN 61326-1 immunity to in...

Product series / family nameProcess controllers

FunctionsDigital temperature / proces...

Design2 user inputs RS-485 4-20mA ...

C48CS003
1 in stock
C48CS003
Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 D...

Main functionCounter (Digital)

Supply voltage (AC)85-250Vac (100Vac / 110Vac /...

Digital inputs1 x digital input (high-spee...

Primary brandRed Lion

Communication protocol-

Digital outputs1 x digital output (NPN) 1 x...

Compliant with standard(s)-

Product series / family nameProcess indicators

FunctionsSingle preset digital counte...

Design1/16 DIN (48x48mm)

PAXT0010
1 in stock
PAXT0010
Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 u...

Main functionThermometer (Digital)

Supply voltage (AC)-

Digital inputs3 x digital inputs (Sink/Sou...

Primary brandRed Lion

Communication protocol-

Digital outputs-

Compliant with standard(s)-

Product series / family nameProcess indicators

FunctionsUniversal digital temperatur...

Design3 user inputs 1/8 DIN horizo...

About the manufacturer

Red Lion

Powermatic Associates is an authorized Red Lion distributor, proudly offering a wide range of their innovative industrial automation and networking products. Red Lion Controls has been a leader in delivering reliable solutions for over 50 years, specializing in advanced communication, monitoring, and control for diverse industries. Their comprehensive product line includes cutting-edge HMI operato...

Recently viewed products

MDI3CRL34A7-EQ on Powermatic Associates

MDI3CRL34A7-EQ

Novanta IMS

Novanta IMS MDI3CRL34A7-EQ is a stepper motor characterized by its integrated driver and 2-phase DC stepper motor functionality. It features an external single-end 512-line optical encoder and a single motor stack, enhanced by the Plus 2 version for expanded features. This part offers a 14-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage ranges from 12Vdc to 75Vdc, with specific ratings at 24Vdc, 48Vdc, and 72Vdc. It is designed for mounting with an 85x85mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The MDI3CRL34A7-EQ has an IP20 degree of protection, a moment of inertia of 1kg.cm^2, a stall torque of 233N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

Relevant products

PXU30020 on Powermatic Associates

PXU30020

Verified stock: 0

Red Lion PXU30020 is a digital temperature/process PID controller designed for flush mounting. It operates within an ambient air temperature range of 0 to +50°C and supports a network frequency of 50/60 Hz. This model features a 4-20mA control analog output and is housed in a 1/16 DIN (48x48mm) enclosure with 11mm orange and 7mm green digits for display. It accepts a wide range of supply voltages from 100 to 240Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. As part of the PXU PID controllers series, it measures 1/16 DIN in dimensions (W48mm x H48mm / 1.89" x 1.89") and offers a degree of protection rated at IP65 NEMA 4X. The controller features a 10Hz analog input sampling rate and includes 1 x analog input that supports 4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc, various thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD with a 100ms sample period and 0.1 to 1° accuracy. It also includes protection functions such as heater current monitoring and provides 1 x analog output (4-20mA) for main control output.

Red Lion

PXU31B20 on Powermatic Associates

PXU31B20

Verified stock: 0

Red Lion PXU31B20 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a design that includes 1 user input RS-485, C.T. input, 4-20mA control analog output, and a secondary relay control output. The device fits a 1/16 DIN (48x48mm) form factor with display digits of 11mm orange / 7mm green. It accepts a supply voltage (AC) of 100-240Vac, covering a wide range of standard voltages. As part of the PXU PID controllers series, it measures 1/16 DIN (W48mm x H48mm / 1.89" x 1.89") and offers a degree of protection rated at IP65 NEMA 4X. The controller has a 10Hz analog input sampling rate and utilizes the RS-485 communication protocol. It includes 1 x digital output (contact type) for secondary control output 2, 1 x analog input supporting various signal types with a 100ms sample period and 0.1 to 1° accuracy, and features heater current monitoring for protection. Additionally, it has 1 x digital input for user input and 1 x analog output (4-20mA) for the main control output.

Red Lion

PXU31BC0 on Powermatic Associates

PXU31BC0

Verified stock: 0

Red Lion PXU31BC0 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C. It features a 1/8 DIN vertical design, measuring 49.5mm in width and 96.5mm in height, with 12mm orange/green digits for display. This model is part of the PXU PID controllers series and offers a degree of protection rated at IP65 NEMA 4X. It operates on a 24Vdc supply voltage and supports a 10Hz analog input sampling rate. Communication is facilitated through an RS-485 protocol. The PXU31BC0 includes one digital output (contact type) for secondary control, one analog input capable of accepting various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD with a 100ms sample period and 0.1 to 1° accuracy. It also features heater current monitoring for protection, one digital input for user input, and one analog output (4-20mA) for main control output.

Red Lion

PXU31BE0 on Powermatic Associates

PXU31BE0

Verified stock: 0

Red Lion PXU31BE0 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C. It features a 1/4 DIN size (96mm x 96mm), an RS-485 communication protocol, and is equipped with a single user input, a C.T. input, and a 4-20mA control analog output alongside a secondary relay control output. The display consists of 22mm orange and 14mm green digits, ensuring clear visibility. This model falls under the PXU PID controllers series and offers a degree of protection rated at IP65 NEMA 4X. It operates on a 24Vdc supply voltage with a 10Hz analog input sampling rate. The controller supports various analog inputs including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and an accuracy range of 0.1 to 1°. Additionally, it features heater current monitoring protection functions, one digital input for user input, and one analog output (4-20mA) for main control output.

Red Lion

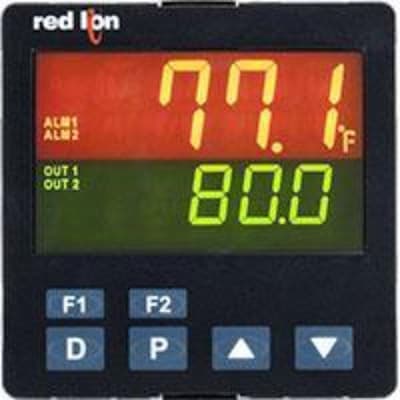

PXU31CE0 on Powermatic Associates
