PXU41A50 Red Lion Industrial Automation Components

PXU41A50 on Powermatic Associates
Red Lion

Part#:PXU41A50

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PXU41A50 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a design that includes 2 user inputs, RS-485 communication protocol, a 0-10Vdc control analog output, and a secondary relay control output. The device is housed in a 1/4 DIN (96x96mm) enclosure with 22mm orange and 14mm green digits for display. It requires a supply voltage (AC) of 100-240Vac, accommodating a wide range of voltages including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. As part of the PXU PID controllers series, it measures 1/4 DIN (W96mm x H96mm / 3.77" x 3.77") and offers a degree of protection rated at IP65 NEMA 4X. The controller has a frequency of 10Hz for analog input sampling rate and includes 1 x digital output (contact type) for secondary control output 2, 1 x analog input supporting various signal types with a 100ms sample period and 0.1 to 1° accuracy, heater current monitoring protection functions, 2 x digital inputs for user inputs, and 1 x analog output (0-10Vdc) for main control output 1.

Product Details

  • Main function
    Temperature controller (Digital)
  • Supply voltage (AC)
    100-240Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Sub-range name
    PXU PID controllers series
  • Display
    2 rows x 4-digits negative backlit LCD display with orange characters (top row; 22mm high) and green characters (bottom row; 14mm high)
  • Communication protocol
    RS-485
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Ambient air temperature for operation
    0...+50 °C
  • Frequency
    10Hz analog input sampling rate
  • Primary brand
    Red Lion
  • Mounting mode
    Flush
  • Degree of protection
    IP65 NEMA 4X
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Order code / Manufacturer SKU
    PXU41A50
  • Functions
    Digital temperature / process PID controller
  • Analog outputs
    1 x analog output (0-10Vdc) (MAIN CONTROL OUTPUT 1)
  • Network frequency
    50/60 Hz
  • Product series / family name
    Process controllers
  • Design
    2 user inputs RS-485 0-10Vdc control analog output secondary rly. control output 1/4 DIN (96x96mm) 22mm orange / 14mm green digits
  • Dimensions
    1/4 DIN (W96mm x H96mm / 3.77" x 3.77")
  • Protection functions
    Heater current monitoring
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection
  • Digital inputs
    2 x digital inputs (user inputs)
  • Digital outputs
    1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PXU41A50 Related Documents

Red Lion - PXU - Data Sheet.pdfRed Lion - PXU - Installation Guide.pdfRed Lion - PXU - Manual.pdf

Similar products from: Red Lion Industrial Automation Components

G07C0000 on Powermatic Associates

G07C0000

Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection type that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The supply voltage required for operation ranges from 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It operates within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The unit provides connection capacity for up to 5 x module slots and has a power consumption of typically 9 W, with a maximum of 37 W. The electrical durability of the backlight is rated for 50,000 hours. Additionally, it includes an SD card slot for storage and features a brightness level of 500cd/m2.

2 in stock
PAXLBK25 on Powermatic Associates

PAXLBK25

Red Lion

Red Lion PAXLBK25 is a label kit designed for marking purposes.

15 in stock
104TX on Powermatic Associates

104TX

Red Lion

Red Lion 104TX is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs, ensuring continuous operation. This model does not support AC supply voltage. It features 4 RJ45 ports supporting 10/100BaseTX for connectivity, with a maximum throughput of 800Mbit/s, catering to demanding industrial environments. The 104TX operates within an ambient air temperature range of -40 to +80°C, suitable for various operational climates. It boasts an IP30 degree of protection, indicating a solid metallic case designed for DIN rail mounting, which underscores its robustness for industrial settings. The communication protocol supported is Ethernet, making it compatible with a wide range of devices. This part falls under the N-Tron 100 series, indicating its place within Red Lion's lineup of industrial networking solutions.

2 in stock
C48CS003 on Powermatic Associates

C48CS003

Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 DIN (48x48mm) enclosure. It operates on a supply voltage range of 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac, and also supports a DC supply voltage of 11-14Vdc, specifically 12Vdc. The dimensions of this counter are standardized to 1/16 DIN, measuring W48mm x H48mm (1.89" x 1.89"). It offers a degree of protection rated at IP65 NEMA 4X, suitable for flush or door mounting. The C48CS003 features 1 high-speed digital input (12kHz; Sink/Source) labeled INPUT A, an additional digital input (Sink/Source) designated as USER INPUT 1, and a third digital input (Sink/Source) that can function as input B or USER INPUT 1. For output, it provides 1 digital output (NPN) and 1 digital output (contact type NO).

1 in stock
G10S0000 on Powermatic Associates

G10S0000

Red Lion

Red Lion G10S0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for both indoor and outdoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port supporting both RS-422 and RS-485 communication protocols. The unit operates on a supply voltage range of 10-30Vdc, accommodating both 12Vdc and 24Vdc systems. It is engineered to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G10S0000 is equipped with 7 module slots for connection capacity, and its power consumption is typically 18 W, with a maximum of 53 W. The electrical durability of the backlight is rated at 35,000 hours. For storage, it includes an SD card slot, and it boasts a brightness level of 2500cd/m2.

1 in stock
GK002297 on Powermatic Associates

GK002297

Red Lion

1/8 DIN Gasket

37 in stock

Manufacturer warranty

PXU41A50 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare PXU41A50 with other Industrial Automation Components products

Main function

Supply voltage (AC)

Sub-range name

Display

Communication protocol

Analog inputs

Ambient air temperature f...

Frequency

Primary brand

Mounting mode

Selected product

PXU41A50
Backordered
PXU41A50
Red Lion

Red Lion PXU41A50 is a digital temperature/process PID controller designed for flush mounting and op...

Main functionTemperature controller (Digi...

Supply voltage (AC)100-240Vac (100Vac / 110Vac ...

Sub-range namePXU PID controllers series

Display2 rows x 4-digits negative b...

Communication protocolRS-485

Analog inputs1 x analog input (4-20mA / 0...

Ambient air temperature for operation0...+50 °C

Frequency10Hz analog input sampling r...

Primary brandRed Lion

Mounting modeFlush

C48CS003
1 in stock
C48CS003
Red Lion

Red Lion C48CS003 is a single preset digital counter within the C48 series, designed to fit a 1/16 D...

Main functionCounter (Digital)

Supply voltage (AC)85-250Vac (100Vac / 110Vac /...

Sub-range nameC48 series

Display2 rows x 6-digits reflective...

Communication protocol-

Analog inputs-

Ambient air temperature for operation-

Frequency-

Primary brandRed Lion

Mounting modeFlush / door

G07C0000
2 in stock
G07C0000
Red Lion

Red Lion G07C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor u...

Main functionHMI / Display unit

Supply voltage (AC)-

Sub-range nameHMI Rugged Graphite series

Display7" / 800x480pixels (WVGA) to...

Communication protocolRS-232 RS-422 RS-485 Etherne...

Analog inputs-

Ambient air temperature for operation-

Frequency-

Primary brandRed Lion

Mounting mode-

About the manufacturer

Red Lion

Powermatic Associates is an authorized Red Lion distributor, proudly offering a wide range of their innovative industrial automation and networking products. Red Lion Controls has been a leader in delivering reliable solutions for over 50 years, specializing in advanced communication, monitoring, and control for diverse industries. Their comprehensive product line includes cutting-edge HMI operato...

Recently viewed products

Relevant products

PXU41DC0 on Powermatic Associates

PXU41DC0

Verified stock: 0

Red Lion PXU41DC0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It features a 0-10Vdc control analog output and a secondary relay control output, fitting into a 1/8 DIN vertical space with dimensions of W49.5mm x H96.5mm (1.89" x 3.77") and displays measurements with 12mm orange/green digits. This part of the PXU PID controllers series offers an IP65 NEMA 4X degree of protection and requires a 24Vdc supply voltage. It has a 10Hz analog input sampling rate and supports RS-485 communication protocol. The controller includes 1 digital output (contact type) for secondary control, 2 analog inputs for various signal types including thermocouples and RTD with a 100ms sample period and 0.1 to 1° accuracy, and a remote setpoint input. Additionally, it features heater current monitoring for protection, 1 digital input for user input, and 1 analog output (0-10Vdc) for main control.

Red Lion

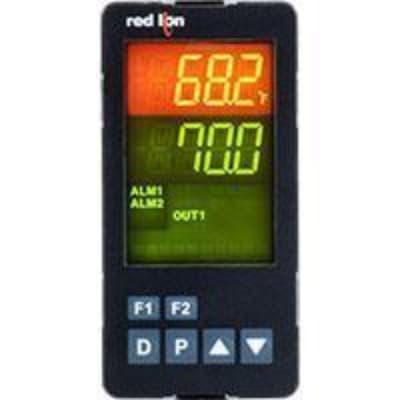

PXU400C0 on Powermatic Associates

PXU400C0

Verified stock: 0

Red Lion PXU400C0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. This unit, part of the PXU PID controllers series, features a 0-10Vdc control analog output and is housed in a 1/8 DIN vertical enclosure measuring 49.5mm wide by 96.5mm high, with 12mm orange/green digits for display. It offers a degree of protection rated at IP65 NEMA 4X and requires a 24Vdc supply voltage. The PXU400C0 supports a 10Hz analog input sampling rate and includes 1 digital output (contact type) for secondary control output 2. It accepts 1 analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, and multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK) as well as RTD, with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it features heater current monitoring for protection and 1 analog output (0-10Vdc) for main control output 1.

Red Lion

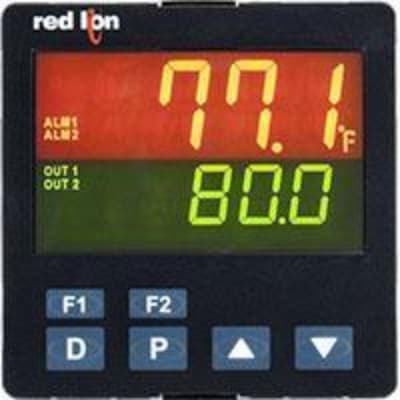

PXU41AE0 on Powermatic Associates

PXU41AE0

Verified stock: 0

Red Lion PXU41AE0 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C. It features 2 user inputs, RS-485 communication protocol, and a 0-10Vdc control analog output alongside a secondary relay control output. This part, belonging to the PXU PID controllers series, measures 1/4 DIN (96mm x 96mm) and offers a degree of protection rated at IP65 NEMA 4X. It operates on a 24Vdc supply voltage with a 10Hz analog input sampling rate. The PXU41AE0 supports various analog inputs including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD with a 100ms sample period and 0.1 to 1° accuracy. It also includes heater current monitoring protection functions, two digital inputs, and one analog output (0-10Vdc) for main control output.

Red Lion

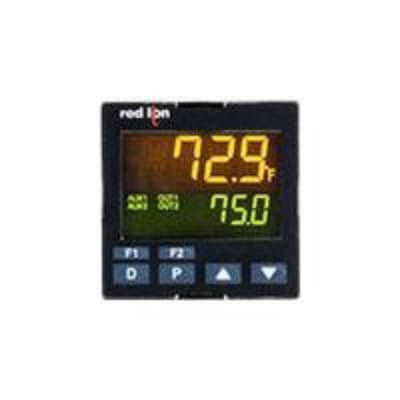

PXU41C20 on Powermatic Associates
