VT-IPM2M-213-D Red Lion Industrial Automation Components

VT-IPM2M-213-D on Powermatic Associates
Red Lion

Part#:VT-IPM2M-213-D

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

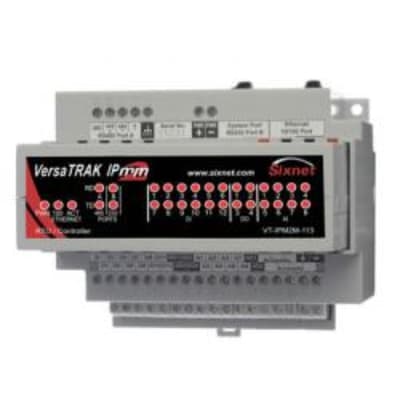

Red Lion VT-IPM2M-213-D is a Mini Industrial Remote Terminal Unit (RTU) constructed from UL 94V-0 materials, offering an IP20 degree of protection. It operates within an ambient air temperature range of -40 to +70°C and is designed for DIN rail mounting. This RTU features 4 digital outputs (30Vdc; 1A; Source), 2 analog outputs (4-20mA DC), and supports communication protocols including RS-232, RS-485, Ethernet, Modbus TCP, and DNP3. It is equipped with 12 digital inputs (Sink/Source), 5 RJ45 ports for Ethernet connections, 1 RJ45 port for RS-232, and 8 analog inputs (4-20mA / 0-5Vdc). The VT-IPM2M-213-D is powered by an Industrial PowerPC 32-bit processor, runs on an embedded Linux operating system, and can connect to 16000 Sixnet nodes and 247 Modbus nodes. It has a memory capacity of 32MB (FLASH), 512KB (NVRAM), and 32MB (DRAM), and requires a supply voltage of 10-30Vdc (12Vdc / 24Vdc).

Product Details

  • Product series / family name
    RTUs
  • Communication protocol
    RS-232 RS-485 Ethernet Modbus TCP DNP3
  • Digital inputs
    12 x digital inputs (Sink/Source)
  • Degree of protection
    IP20
  • Order code / Manufacturer SKU
    VT-IPM2M-213-D
  • Primary brand
    Red Lion
  • Functions
    Mini Industrial Remote Terminal Unit (RTU)
  • Analog outputs
    2 x analog outputs (4-20mA DC)
  • Equivalent to
    VTIPM2M213D
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc)
  • Material
    UL 94V-0 materials
  • Operating System (OS)
    Linux (embedded)
  • Mounting mode
    DIN rail Mounting plate
  • Programming languages
    Sixnet ISaGRAF (IEC61131 compliant language) High level C programming (Linux open software) Ladder diagram (LD) / Relay symbol language Flow charting SFC
  • Design
    data log.
  • Analog inputs
    8 x analog inputs (4-20mA / 0-5Vdc)
  • Processor type
    Industrial PowerPC 32-bit processor
  • Memory capacity
    32MB (FLASH) 512KB (NVRAM) 32MB (DRAM)
  • Connection type
    5 x RJ45 ports (Ethernet) 1 x RJ45 port (RS-232)
  • Digital outputs
    4 x digital outputs (30Vdc; 1A; Source)
  • Sub-range name
    IPm2m
  • Connection capacity
    16000 Sixnet nodes 247 Modbus nodes
  • Main function
    RTU (Remote Terminal Unit)
  • Secondary brand
    Sixnet
  • Ambient air temperature for operation
    -40...+70 °C
  • Compliant with standard(s)
    CE EMI emissions FCC part 15 ANSI C37.90 (Surge withstand) IEEE-472 (Surge withstand) IEC 61131 IEC 60068-2-6 (vibration) EN 61326-1 EN 61000-4-2/3/4/6 EN 61010-1 EN 55022 ICES-003 class A UL 508 CSA C22.2 No.14 ABS UL Class I Division 2 listed UL 1604 (H

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
