Product description

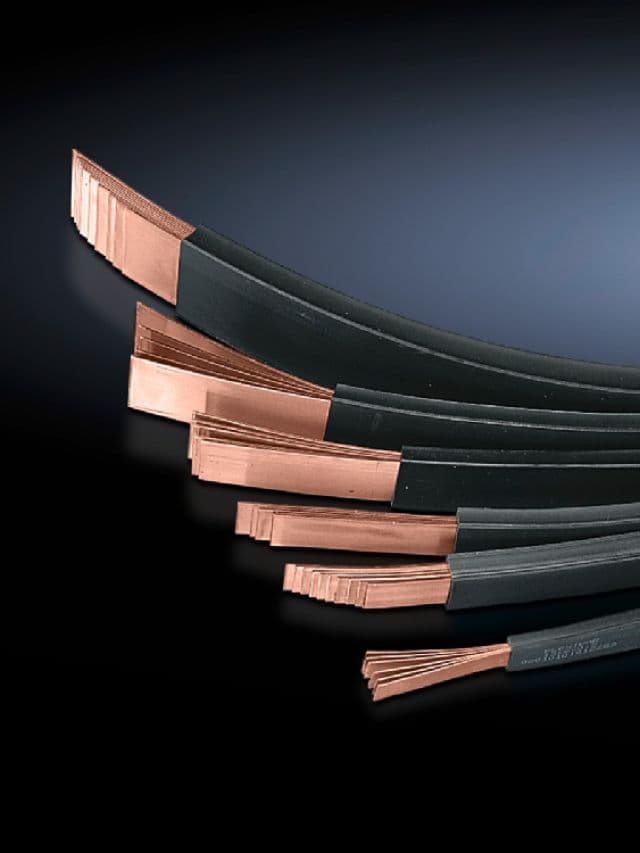

SV Laminated copper bar, WH: 20x5 mm, L: 2000 mm

Product Details

  • Material
    Cu lamina: High-purity electrolyte copper, Insulation: Highly resistant vinyl blend, expansion 370%, temperature: -30°C ... +105°C, fire protection according to UL-94 V0, dielectric strength: 20 kV/mm
  • ETIM 6.0
    EC001522
  • Laminated flat copper version
    Number of lamina: 5, Lamina width: 20 mm ( 0.79" ), Lamina thickness: 1 mm ( 0.04" )
  • Weight/packaging unit
    2.3 kg ( 5.1lb. )
  • Customs tariff number
    74071000
  • Packaging unit
    1 pc(s)
  • Dimensions
    Length: 2,000 mm
  • eCl@ss 6.0/6.1
    27370303
  • ETIM 7.0
    EC001522
  • Copper weight (kg per piece)
    1.8
  • Rated current for temperature increase by
    70 K: 525 A, 50 K: 435 A, 30 K: 330 A
  • Product description
    SV Laminated copper bar, WH: 20x5 mm, L: 2000 mm
  • EAN
    4028177666764
  • Note
    Assembly = number of layers x layer width x layer thickness, May be cut to length as required, The conductor temperature of the laminated copper bar is derived by adding the ambient temperature and the temperature increase together. Example: 3565.005 carr
  • eCl@ss 8.0/8.1
    27370303

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
