31570188 SAB Hook-Up Wire

Name: 31570188
Brand: SAB

Part#:31570188

Manufacturer:SAB

Category:Hook-Up Wire

Product Lifecycle:Active

Product description

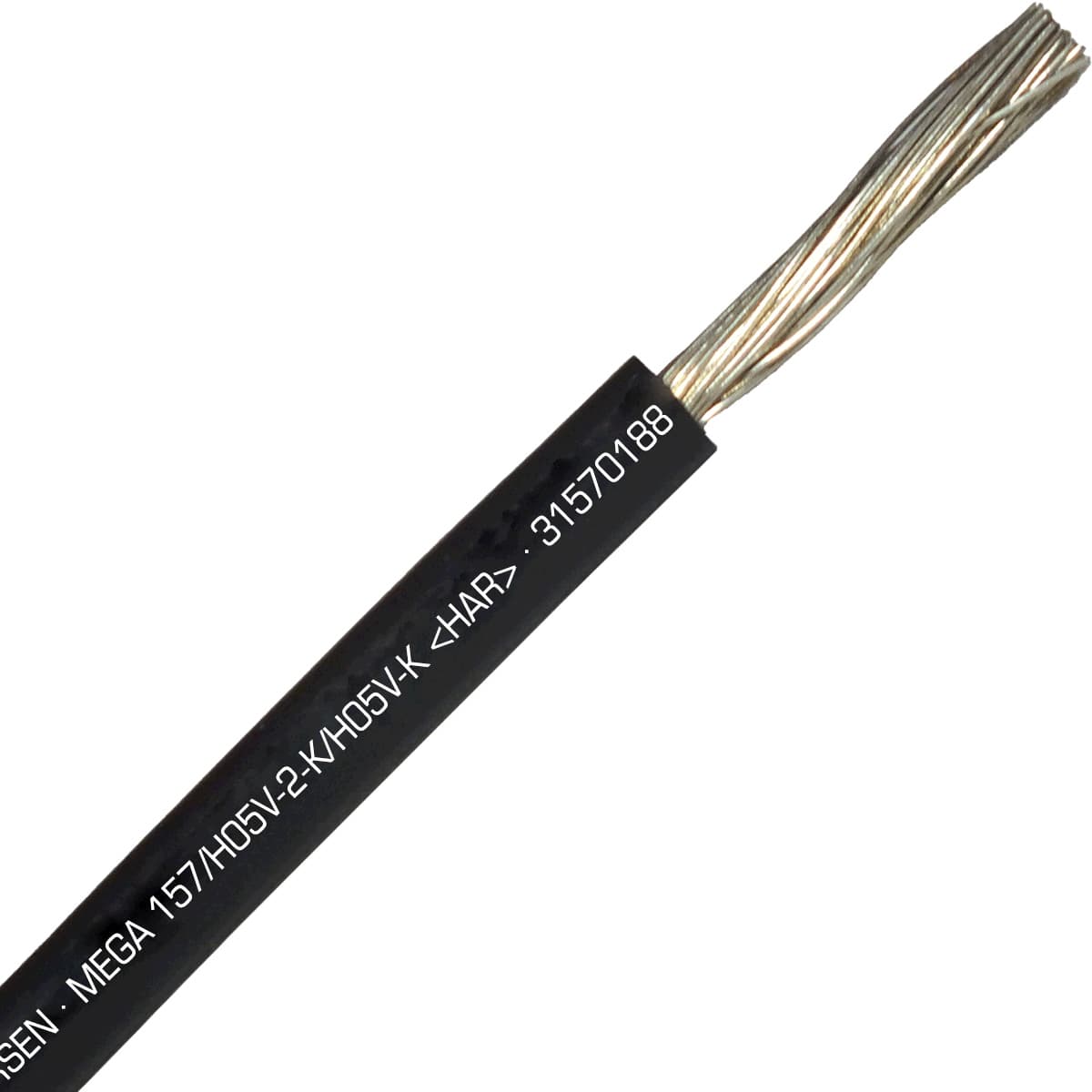

MEGA 157/H05V2-K/H05V-K (HAR/UL/CSA/CE) - 8 AWG hook-up wire, Black

Product Details

Color
Black
Weight
36.74 g
Chemical Resistant
NO
Oil Resistant
No
UV Resistant
NO
Halogen Free
NO
Submersible
NO
Direct Burial
NO
Movement Type
Stationary/Flexible
Application
Control, Power
Gauge
8 AWG
Number of conductors
1
Cable configuration
8 AWG/1c
Stranding type
tinned copper strands, class 5
Shielded
No
Voltage
600
Approvals
UR AWM, VDE, , CE, EAC, RoHS
RoHS
YES
Temperature range
-40°C to +105°C
Outside diameter (OD)
0.268 in

UOM

CSA Certification

UL Certification

YES

CE Certification

YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

SAB 31570188 European Standardized Cable is part of MEGA 157/H07V2-K/H07V-K product family, and is designed for Control, Power applications. This cable is 8 AWG with 1 conductors, and 8 AWG/1c cable configuration. Featuring Black color jacket, and tinned copper strands, class 5 stranding. It has 0.268 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +105°C temperature range, it is and has following approvals: UR AWM, VDE, <HAR>, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.
