8501RSD42P14V53 Schneider Electric Industrial Automation Components

8501RSD42P14V53 on Powermatic Associates
Schneider Electric

Part#:8501RSD42P14V53

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

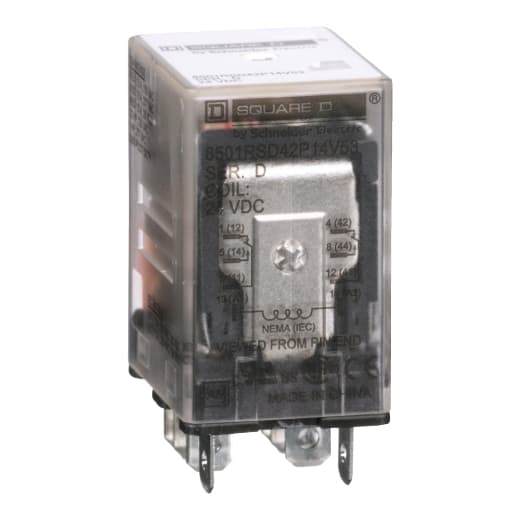

Schneider Electric - 8501RSD42P14V53

Product Details

  • Contact Composition
    DPDT
  • Mounting Type
    Socket
  • Width
    0.83 in (21 mm)
  • Pilot Light
    Green indicator relay energised LED
  • Depth
    1.65 in (41.8 mm)
  • [Uc] Control Circuit Voltage
    24 V DC
  • For Use With
    8501NR42
  • Product Range
    8501R
  • Contact Material
    Silver alloy, gold flashed
  • Relay Type
    Standard
  • Product Type
    Miniature Relay
  • Shape Of Pins
    Spade
  • Manual Operator
    Without test button
  • Height
    1.07 in (27.3 mm)
  • Horsepower Rating
    0.5 120 V AC 1 277 V AC
  • Operating Time
    20 ms - pick-up 20 ms - drop-out
  • Maximum Switching Voltage
    300 V AC 30 V DC
  • Breaking Capacity
    3 A 120 V AC inductive control circuit UL 508 1.5 A 240 V AC inductive control circuit UL 508 15 A 120 V AC resistive control circuit UL 508 10 A 277 V AC resistive control circuit UL 508 15 A 28 V DC resistive control circuit UL 508

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8501RSD42P14V53 on Powermatic Associates is $52.58. Order now.

8501RSD42P14V53 Related Documents

Catalog-1631035486334.pdfProduct Datasheet-1631035486325.pdf
