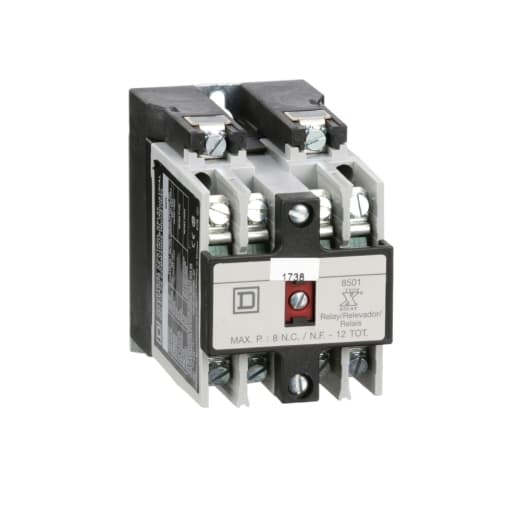

8501XO40V03 Schneider Electric Industrial Automation Components

Product Details

• AWG Gauge
  AWG 18...AWG 12 copper
• Range
  8501X
• Product
  Relay
• Height
  3.5 in (88.90 mm)
• Width
  2.23 in (56.64 mm)
• Control Circuit Voltage Limits
  Operational 0.85...1.1 Uc AC 50/60 Hz
• Mounting Type
  Panel
• Relay Type
  Control
• Electrical Connection
  Screw clamp terminals
• Contact Configuration
  4 NO 4 standard contact cartridges
• Depth
  3.95 in (100.33 mm)
• Tightening Torque
  Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals
• Current Rating
  10 A AC 5 A DC
• Hold-In Power Consumption In VA
  23 VA 60 Hz 25 VA 50 Hz
• Inrush Power In VA
  148 VA 60 Hz 143 VA 50 Hz
• Coil Voltage
  220 V AC 50 Hz 240 V AC 60 Hz
• Operating Time
  15 ms - pick-up 16 ms - drop-out
• [Icm] Rated Short-Circuit Making Capacity
  60 A 120 V AC inductive control circuit UL 508 30 A 240 V AC inductive control circuit UL 508 15 A 480 V AC inductive control circuit UL 508 12 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 5
• Rated Breaking Capacity
  6 A 120 V AC inductive control circuit UL 508 3 A 240 V AC inductive control circuit UL 508 1.5 A 480 V AC inductive control circuit UL 508 1.2 A 600 V AC inductive control circuit UL 508 10 A <= 600 V AC resistive control circuit UL 5
