8502SAO12V02S Schneider Electric Industrial Automation Components

8502SAO12V02S on Powermatic Associates
Schneider Electric

Part#:8502SAO12V02S

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

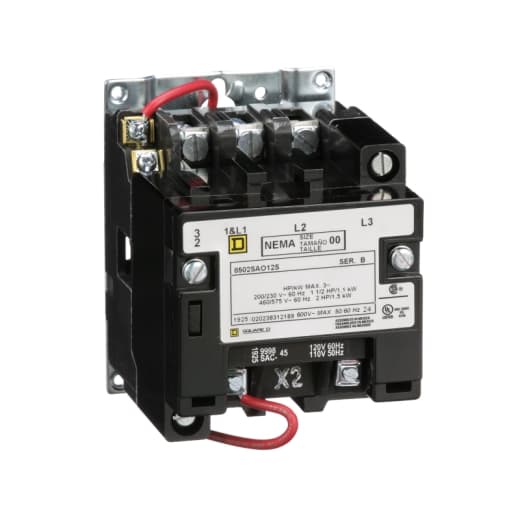

Schneider Electric - 8502SAO12V02S

Product Details

  • Rated Current
    9 A
  • Control Circuit Type
    Separate control circuit
  • Width
    3.22 in (81.79 mm)
  • Contactor Type
    Non-reversing
  • Terminal Type
    Screw clamp terminals
  • Number Of Poles
    3P
  • Depth
    4.22 in (107.19 mm)
  • Product Range
    8502S
  • Height
    4.34 in (110.24 mm)
  • Product Type
    Contactor
  • NEMA Size
    00
  • Pilot Light
    No indicator
  • Other Equipment
    Fuse not supplied
  • Maximum Voltage Rating
    600 V AC
  • Control Units
    No control units
  • Phase
    3 phase
  • Auxiliary Contacts
    Without
  • Coil Voltage
    120 V AC 60 Hz 110 V AC 50 Hz
  • Horsepower Rating
    1.5 HP 200 V AC 1.5 HP 230 V AC 2 HP 460 V AC 2 HP 575 V AC
  • SCCR
    Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC Fuse RK5 60 A maximum, SCCR: 100 kA at 6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8502SAO12V02S on Powermatic Associates is $329.00. Order now.

8502SAO12V02S Related Documents

Instruction Sheet-1631035606423.pdfProduct Datasheet-1631035606409.pdfCatalog-1631035606404.pdf
