8502SEO2V08 Schneider Electric Industrial Automation Components

8502SEO2V08 on Powermatic Associates
Schneider Electric

Part#:8502SEO2V08

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

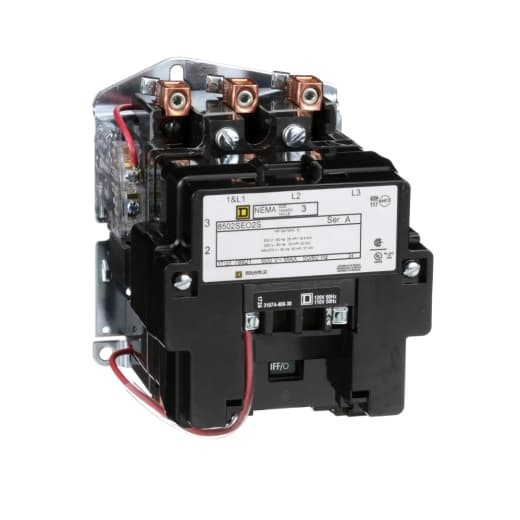

Schneider Electric - 8502SEO2V08

Product Details

  • Rated Current
    90 A
  • Pilot Light
    No indicator
  • Contactor Type
    Non-reversing
  • Depth
    6.50 in (165.10 mm)
  • Auxiliary Contacts
    Without
  • Maximum Voltage Rating
    600 V AC
  • Terminal Type
    Screw clamp terminals
  • Phase
    3 phase
  • Control Units
    No control units
  • Product Range
    8502S
  • Control Circuit Type
    Common control circuit
  • Other Equipment
    Fuse not supplied
  • NEMA Size
    3
  • Number Of Poles
    3P
  • Height
    7.09 in (180.09 mm)
  • Product Type
    Contactor
  • Coil Voltage
    208 V AC 60 Hz
  • Width
    5.47 in (138.94 mm)
  • SCCR
    Circuit-breaker 150 A maximum, SCCR: 100 kA at 480 V AC Fuse J 200 A maximum, SCCR: 100 kA at 600 V AC Fuse T 200 A maximum, SCCR: 100 kA at 600 V AC Fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC Fuse RK5 200 A maximum, SCCR: 100 kA
  • Horsepower Rating
    25 HP 200 V AC 30 HP 230 V AC 50 HP 460 V AC 50 HP 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8502SEO2V08 on Powermatic Associates is $1,425.00. Order now.

8502SEO2V08 Related Documents

Product Datasheet-1631038649616.pdfCatalog-1631038649603.pdfInstruction Sheet-1631038649619.pdf
