8910DPA32V02Y135 Schneider Electric Industrial Automation Components

8910DPA32V02Y135 on Powermatic Associates
Schneider Electric

Part#:8910DPA32V02Y135

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

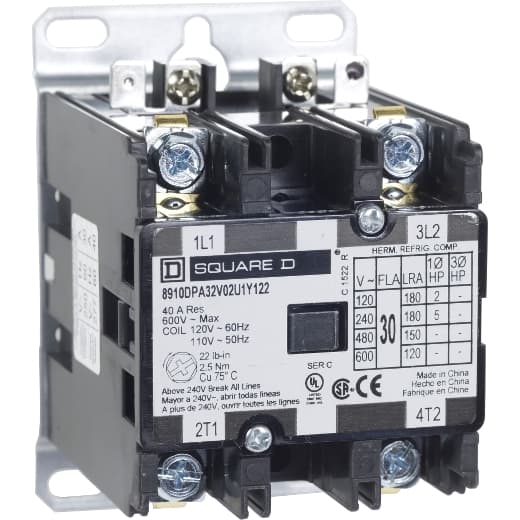

Schneider Electric - 8910DPA32V02Y135

Product Details

  • Pole Contact Composition
    2 NO
  • Product Or Component Type
    Definite Purpose Contactor
  • Range Of Product
    DPA
  • Number Of Poles
    2P
  • Phase
    1 phase
  • [Ue] Rated Operational Voltage
    600 V AC
  • Mounting Support
    35 mm DIN rail
  • Line Rated Current
    30 A
  • [Uc] Control Circuit Voltage
    120 V AC 60 Hz 110 V AC 50 Hz
  • Maximum Horse Power Rating
    2 hp 115 V AC, 1 phase 5 hp 230 V AC, 1 phase
  • Electrical Connection
    Binder head Quick connect terminals
  • Locked Rotor Rated Current
    150 A 460 V AC 120 A 575 V AC 180 A 277 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8910DPA32V02Y135 on Powermatic Associates is $101.60. Order now.
