9070T100D1 Schneider Electric Industrial Automation Components

9070T100D1 on Powermatic Associates
Schneider Electric

Part#:9070T100D1

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

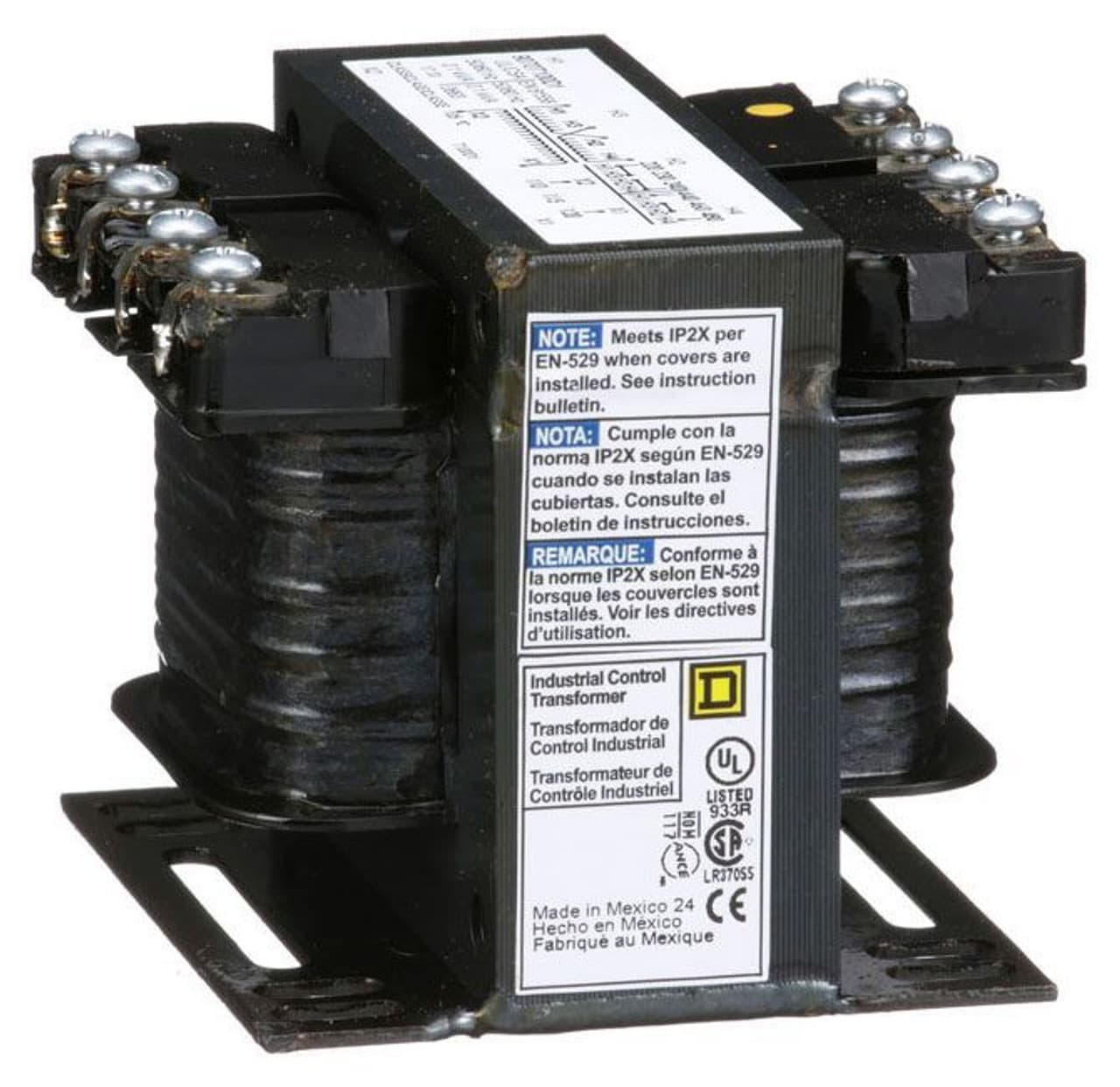

Schneider Electric - 9070T100D1

Product Details

  • Material
    Copper winding
  • Type
    T
  • Number Of Phases
    1 phase
  • Product Type
    Industrial Control Transformer
  • Height
    2.89 in (73.41 mm)
  • Electrical Connection
    Screw clamp terminals
  • Width
    3.38 in (85.85 mm)
  • Depth
    3.34 in (84.84 mm)
  • Fingersafe Cover Compatibility
    FSC1
  • Power Rating
    100 VA
  • Temperature Rise
    55 °C
  • Shipping Weight:
    3.80 lbs.
  • Shipping Length:
    4.00 In.
  • Shipping Height:
    4.00 In.
  • UPC:
    785901904649
  • Shipping Width:
    5.00 In.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9070T100D1 on Powermatic Associates is $186.00. Order now.
